Boss RE202 Space Echo Guitar Effects Pedal
-
Boss RE202 Space Echo Effects Pedal Features
- Sampling Frequency
- 48 kHz
- AD Conversion
- 24 bits + AF method
AF method (Adaptive Focus method) This is a proprietary method from Roland & BOSS that vastly improves the signal-to-noise (SN) ratio of the AD converter. - DA Conversion
- 32 bits
- Processing
- 32-bit floating point
- Modes
- 12 modes
- Memory
- 127 + Manual
- Nominal Input Level
- INPUT A/MONO, INPUT B: -10 dBu
- Maximum Input Level
- INPUT A/MONO, INPUT B: +7 dBu
- Input Impedance
- INPUT A/MONO, INPUT B: 1 M ohm
- Nominal Output Level
- OUTPUT A/MONO, OUTPUT B: -10 dBu
- Maximum Output Level
- OUTPUT A/MONO, OUTPUT B: +7 dBu
- Output Impedance
- OUTPUT A/MONO, OUTPUT B: 1 k ohm
- Recommended Load Impedance
- OUTPUT A/MONO, OUTPUT B: 10 k ohms or greater
- Bypass
- Buffered bypass
- Controls
- ON/OFF switch
MEMORY switch
TAP switch
SATURATION knob
WOW & FLUTTER knob
MODE SELECTOR knob
BASS knob
TREBLE knob
REVERB VOL knob
REPEAT RATE knob
INTENSITY knob
ECHO VOL knob
MEMORY button
INPUT button
TAPE button - Connectors
- INPUT A/MONO jack, INTPUT B jack, OUTPUT A/MONO jack, OUTPUT B jack: 1/4-inch phone type
CTL 1, 2/EXP jack: 1/4-inch TRS phone type
MIDI (IN, OUT) jacks: Stereo miniature phone type
DC IN jack
USB port: USB micro B-type (program update only) - Power Supply
- AC adaptor
- Accessories
- AC adaptor
Owner's Manual
Leaflet ("USING THE UNIT SAFELY," "IMPORTANT NOTES," and "Information")
Rubber foot - SIZE AND WEIGHT
- Width Depth Height
- H 192 x D 133 x H 52 mm
- Weight
- 860 g

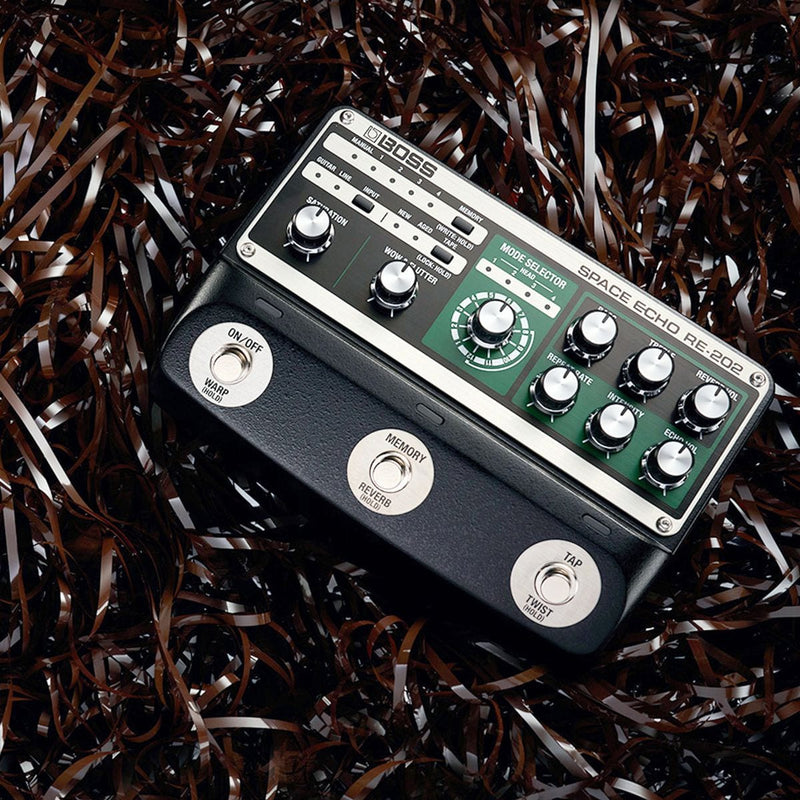

Boss RE-202 Space Echo Guitar Effects Pedal
A Masterpiece Returns in the Modern Era
Introduced in 1974, the Roland RE-201 Space Echo stands among the most legendary and sought-after effect units ever produced. This tape-based classic remained in production for over 14 straight years, and its distinctive rhythmic echo sounds, warm character, and highly playable sonic quirks still inspire musicians, producers, and audio mixers over four decades on.
Backed by intensive R&D and our latest innovations, the RE-202 faithfully delivers the authentic sound and behaviour of the Space Echo-like never before. Built by the company that designed the original, this advanced pedal captures the RE-201’s magic in flawless detail, from the magnetic tape and motor properties to the vibrant spring reverb and colorful preamp circuit. And to take things even further, we’ve expanded the vintage Space Echo experience with lots of new features tuned for today’s music.
Standard Features
- Authentically recreates the sound and behaviour of the legendary Roland RE-201 Space Echo
- Classic multi-head tape echo sound with an expanded delay time
- Original three-head configuration plus additional tape head for 12 unique echo combinations
- Independent stereo reverb section with original spring reverb type plus hall, plate, room, and ambience
- Saturation control for adding magnetic tape compression and preamp colouration
- Wow & Flutter control for introducing varying levels of natural tape modulation
- Choose between new and aged tape conditions
- Selectable input modes for optimum performance with instruments and line-level gear
- Warp and Twist effects with footswitch control
- Select between the unprocessed analog dry signal or the modelled sound of the original Space Echo preamp
- Four onboard memories plus the current panel settings
- Save and select 127 memories via external MIDI program change
- Tap tempo and carryover functions
- True stereo input and output
- Expandable control via external footswitches, an expression pedal, or MIDI
Tape Echo Magic
Tape echo was the first delay effect and one of the first effect processors available for electronic musicians. In contrast with today’s CPU-based digital units, a tape echo is a simple machine that uses a motor to pull magnetic tape across one or more record/playback heads. Warm, full, and dynamic, the tape echo sound is influenced by many factors. The ever-changing input level colors the sound with varying amounts of tape saturation and compression. In addition, motor speed fluctuations, friction, wow and flutter, and other elements introduce an appealing modulated character that’s subtle and continually evolving.

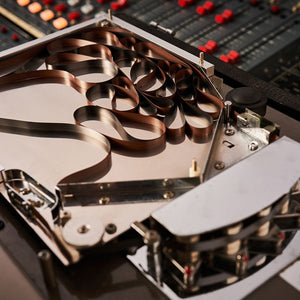

RE-201 Space Echo: Simply Legendary
The RE-201 was a benchmark Roland product and one of the leading tape echo units of its era. It featured three evenly spaced heads that produced a wider range of echo effects than typical single-head designs, plus an innovative free-running tape system that provided superior performance with minimal tape wear. Grab-and-go controls enabled quick access to clean, single delays or various head combinations for dense, rhythmic echoes. A spring reverb tank was included too, making the RE-201 a one-stop-shop for quality ambience effects. Last but not least, analog preamp circuitry was another key ingredient in the Space Echo’s rich sonic recipe.
Sonic Enhancements
The RE-202 includes many new features that extend the Space Echo for today’s musicians. Twice the delay time is available, along with a fourth virtual tape head that unlocks five additional sound combinations. There’s also an echo type that changes the distance between the heads, something not possible with the original. In contrast with the mono RE-201, the RE-202 provides true stereo I/O and selectable operation for guitar or line-level devices. For the dry sound, you can choose between the warm and fat RE-201 preamp tone or a clean signal with zero processing.
Also included is a stereo version of the original spring reverb sound from the RE-201, along with hall, plate, room, and ambience types for additional versatility. Expressive Warp and Twist effects are available as well, allowing you to launch the sound into outer space with the press of a footswitch while performing.
-
Boss RE202 Space Echo Effects Pedal Features
- Sampling Frequency
- 48 kHz
- AD Conversion
- 24 bits + AF method
AF method (Adaptive Focus method) This is a proprietary method from Roland & BOSS that vastly improves the signal-to-noise (SN) ratio of the AD converter. - DA Conversion
- 32 bits
- Processing
- 32-bit floating point
- Modes
- 12 modes
- Memory
- 127 + Manual
- Nominal Input Level
- INPUT A/MONO, INPUT B: -10 dBu
- Maximum Input Level
- INPUT A/MONO, INPUT B: +7 dBu
- Input Impedance
- INPUT A/MONO, INPUT B: 1 M ohm
- Nominal Output Level
- OUTPUT A/MONO, OUTPUT B: -10 dBu
- Maximum Output Level
- OUTPUT A/MONO, OUTPUT B: +7 dBu
- Output Impedance
- OUTPUT A/MONO, OUTPUT B: 1 k ohm
- Recommended Load Impedance
- OUTPUT A/MONO, OUTPUT B: 10 k ohms or greater
- Bypass
- Buffered bypass
- Controls
- ON/OFF switch
MEMORY switch
TAP switch
SATURATION knob
WOW & FLUTTER knob
MODE SELECTOR knob
BASS knob
TREBLE knob
REVERB VOL knob
REPEAT RATE knob
INTENSITY knob
ECHO VOL knob
MEMORY button
INPUT button
TAPE button - Connectors
- INPUT A/MONO jack, INTPUT B jack, OUTPUT A/MONO jack, OUTPUT B jack: 1/4-inch phone type
CTL 1, 2/EXP jack: 1/4-inch TRS phone type
MIDI (IN, OUT) jacks: Stereo miniature phone type
DC IN jack
USB port: USB micro B-type (program update only) - Power Supply
- AC adaptor
- Accessories
- AC adaptor
Owner's Manual
Leaflet ("USING THE UNIT SAFELY," "IMPORTANT NOTES," and "Information")
Rubber foot - SIZE AND WEIGHT
- Width Depth Height
- H 192 x D 133 x H 52 mm
- Weight
- 860 g
