Yamaha PSR-SX620 Arranger Workstation Keyboard

Where Creativity Begins

The Yamaha PSR-SX620 is the new entry point to Yamaha's PSR-SX arranger workstation range, combining expressive sounds, powerful accompaniment features and intuitive hands-on controls in a compact 61-note keyboard. With 1,002 Voices, 51 Drum/SFX Kits, 137 Super Articulation Voices and 450 accompaniment Styles, there's a huge amount to explore, whether you're playing at home, creating arrangements, rehearsing or performing live.

Buy Your Yamaha PSR-SX620 From Keyboard Players Who Know It

At Bonners Music, we're keyboard players ourselves, and we've been helping musicians choose the right keyboards and pianos for decades. We don't just want to sell you a PSR-SX620. Our experienced keyboard specialists are here to offer knowledgeable advice before you buy and friendly help and support after your new keyboard arrives.

Choosing the right arranger keyboard is a personal decision, so if you're unsure whether the Yamaha PSR-SX620 is the right model for you, speak to the Bonners team. We can help you compare your options and choose the instrument that best suits the way you play.

We also offer finance options to help spread the cost of your new Yamaha keyboard, and if you already own a keyboard or other musical instrument, our part-exchange service could make upgrading to the PSR-SX620 even easier. Find out more about part-exchange at Bonners.

When you buy a Yamaha PSR-SX620 from Bonners, you're buying from a specialist music retailer with experienced musicians on hand to help you before, during and after your purchase.

Expressive Sounds & Super Articulation Voices

At the heart of the Yamaha PSR-SX620 is an extensive sound library covering a wide variety of instruments and musical genres.

There are 1,002 preset Voices plus 51 Drum/SFX Kits, together with 480 XG Voices. Among these are 137 Super Articulation Voices and 34 MegaVoices. Super Articulation Voices are designed to capture characteristic articulations and expressive details of real musical instruments, adding greater nuance and expression to your playing.

The PSR-SX620 uses AWM Stereo Sampling and provides 128-note maximum polyphony, with Right 1, Right 2 and Left keyboard parts.

450 Accompaniment Styles

The Yamaha PSR-SX620 includes 450 preset accompaniment Styles, comprising 416 Pro Styles, 33 Session Styles and one Free Play Style.

Styles provide automatic musical accompaniment as you play, with three Intros, four Main Variations, four Fills, a Break and three Endings available for building complete arrangements and performances.

Four One Touch Settings (OTS) are provided for each Style, while the PSR-SX620 supports a range of fingering options including Single Finger, Fingered, Fingered On Bass, Multi Finger, AI Fingered, Full Keyboard, AI Full Keyboard and Smart Chord.

Smart Chord

Smart Chord makes automatic accompaniment particularly accessible by allowing you to turn a single root note into a full chord. This means you can create professional accompaniment without needing to play every note of each chord yourself.

Chord Looper

The Chord Looper lets you record and play back chord sequences in real time.

Once your chord progression is looping, your left hand is free to concentrate on other parts of your performance. You could play full piano parts, improvise, shape sounds or build different sections of a song without having to continue playing the accompaniment chords.

You can store up to eight chord sequences in each bank, create an unlimited number of banks containing your own chord progressions, or choose from a range of built-in presets.

Live Control Knobs & Joystick Controller

The Yamaha PSR-SX620 gives you hands-on control over your performance with two assignable Live Control knobs and a Joystick Controller.

The Live Control knobs allow real-time adjustment of parameters including brightness, tone and effects, while the joystick provides expressive pitch and modulation control.

These physical controls make it easy to shape and change your sound while you're actually playing.

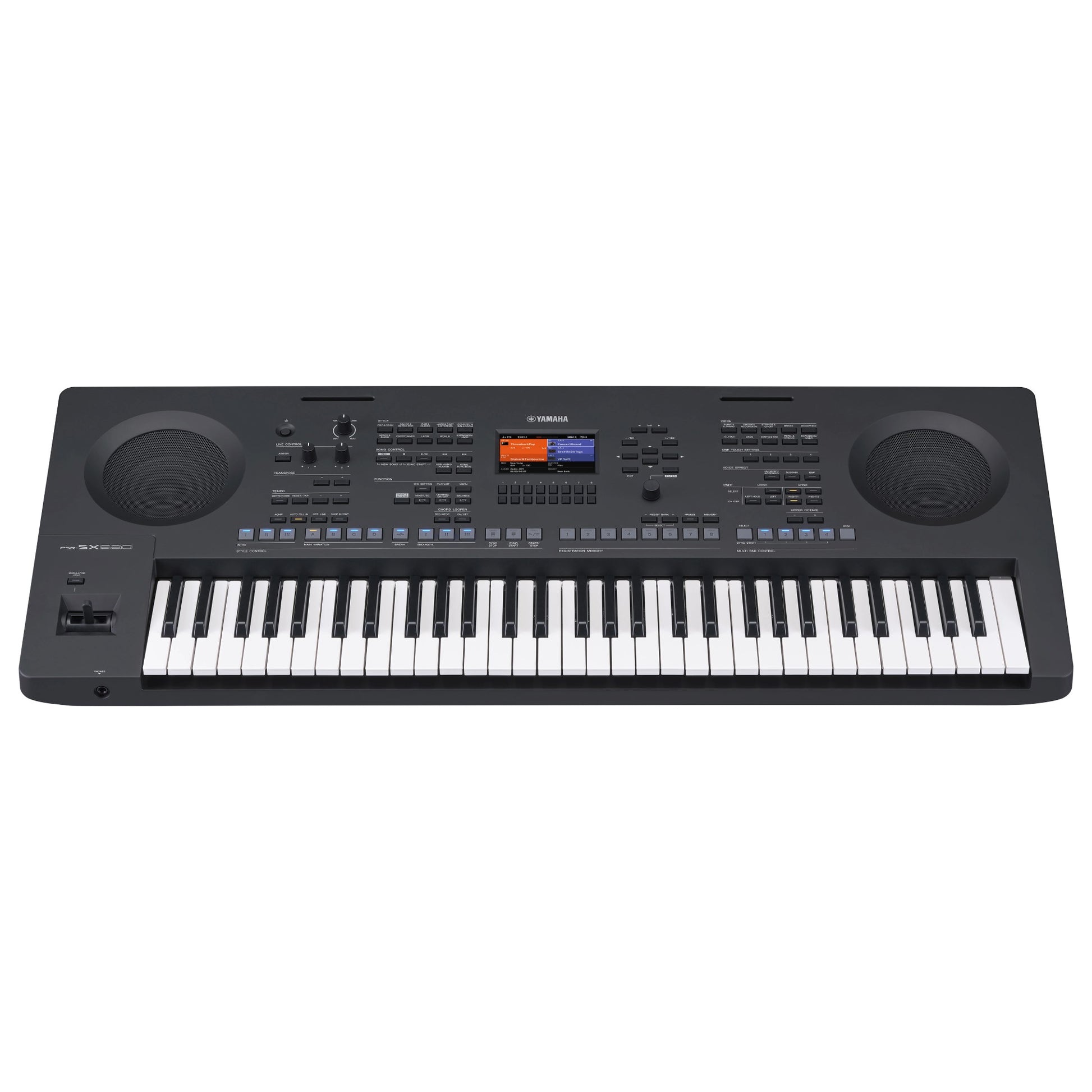

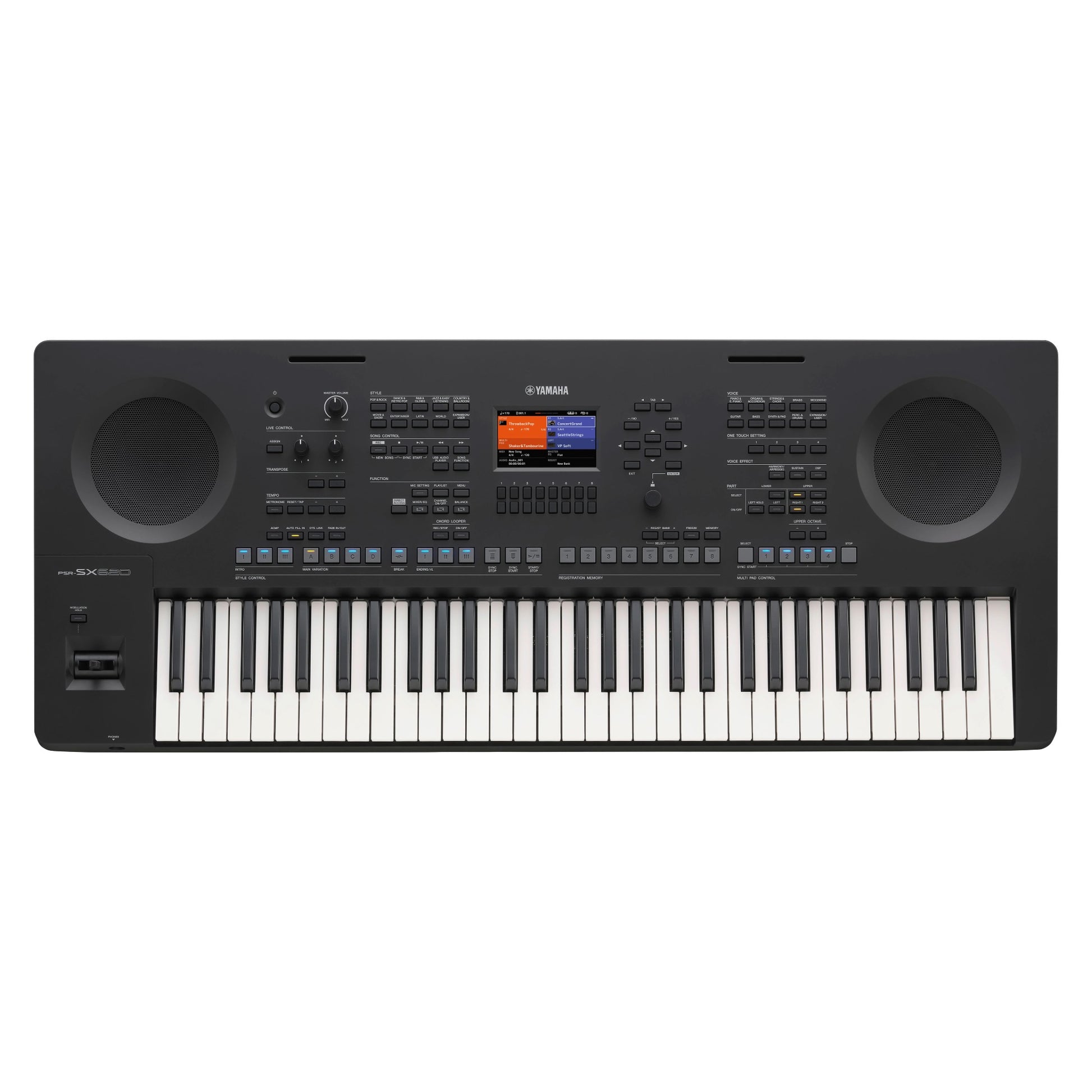

Redesigned Control Panel

Yamaha has completely redesigned the PSR-SX620 panel to make the instrument clearer and more intuitive to operate.

Frequently used controls are positioned within easy reach, helping you concentrate on playing rather than navigating menus. Whether you're changing a Style, shaping a sound or performing live, the controls are designed to feel immediate and accessible.

At the centre of the instrument is a 4.3-inch TFT colour LCD display, providing a clear visual interface for navigating the PSR-SX620's functions.

Powerful Built-In Speaker System

Despite its compact cabinet, the Yamaha PSR-SX620 features a newly developed speaker system with an Internal BassPort.

An enlarged internal sound chamber enhances bass depth and resonance, while a front-facing bass reflex design improves low-frequency response. Yamaha has also made structural refinements within the cabinet to help produce a tighter, cleaner sound.

The onboard sound system combines two 12cm speakers with 15W + 15W amplification, so the PSR-SX620 is ready to play without requiring separate amplification.

Improved Line Outputs for Live Performance

If you're connecting the Yamaha PSR-SX620 to external speakers or a PA system, upgraded audio output circuitry is designed to provide a clearer and more powerful signal.

Dedicated L/L+R and R line outputs make the PSR-SX620 suitable for connecting directly to an external sound system for live performance, rehearsal or recording.

Bluetooth Audio

Built-in Bluetooth Audio allows you to stream music wirelessly from a compatible device through the PSR-SX620's speaker system.

This makes it easy to play along with your favourite music without needing a separate wired audio connection.

The keyboard also includes a built-in audio recorder, allowing you to capture your performance as a WAV audio file.

Microphone Input & Vocal Effects

The PSR-SX620 isn't limited to keyboard performance. A dedicated microphone input lets you connect a microphone directly to the instrument.

Built-in microphone processing includes Noise Gate, Compressor and 3-band EQ, giving singers and keyboard players the ability to bring their keyboard and vocal performance together.

Expansion Packs & 380MB Expansion Memory

The Yamaha PSR-SX620 includes approximately 380MB of Expansion Voice memory and supports Expansion Styles, allowing you to add further Voices and Styles to the instrument.

By signing up for a Yamaha Music ID, you can access Yamaha's growing library of Expansion Content.

The Expansion Explorer app makes it easier to access, search, preview and manage Expansion Content. Expansion Explorer is available for iOS, Android, Windows and Mac.

Turn MIDI Files Into Your Own Styles

Yamaha's MIDI Song to Style app can convert a standard MIDI file into a ready-to-play accompaniment Style.

The resulting Style can include intros, endings, main sections and fill-ins, providing another way to create personalised accompaniment material for your PSR-SX620.

MIDI & Audio Recording

The Yamaha PSR-SX620 provides both MIDI and audio recording facilities.

MIDI recording supports 16 tracks, with Quick Recording, Multi Recording and Step Recording functions available. The instrument also includes Song Creator, Style Creator and Multi Pad Creator functions.

The built-in audio recorder can record WAV files at 44.1kHz, 16-bit stereo, with a maximum recording time of 80 minutes per song. Audio playback functions include Time Stretch, Pitch Shift and Vocal Cancel.

Registration Memory, Playlists & Multi Pads

For organising your performances, the PSR-SX620 provides eight Registration Memory buttons, together with Registration Sequence and Freeze functions.

Playlist functionality supports up to 500 records per Playlist file, while the instrument also includes 226 Multi Pad banks with four pads per bank and Audio Link functionality.

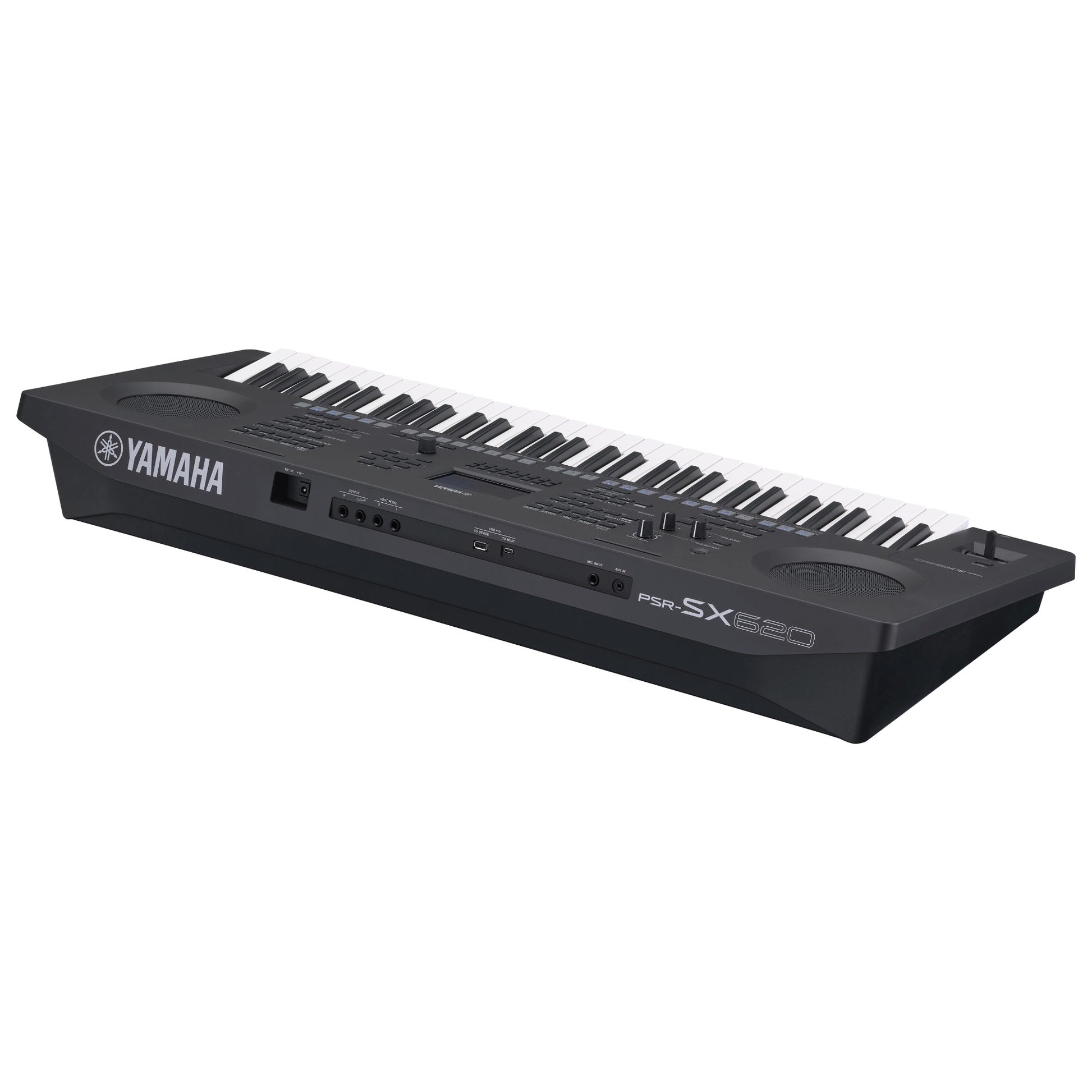

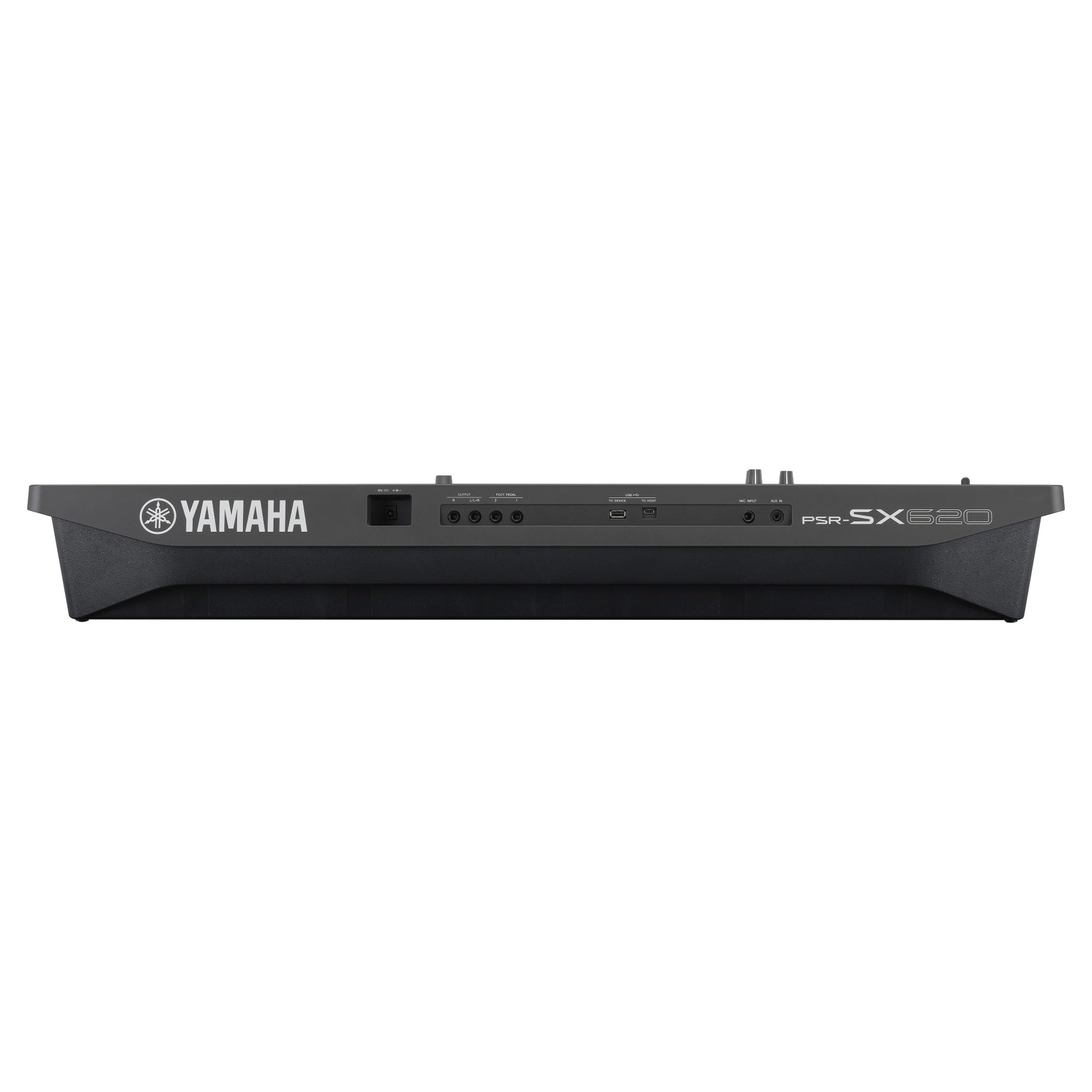

Connectivity

The Yamaha PSR-SX620 provides a comprehensive selection of connections for home playing, recording and live performance:

• Headphone output

• Microphone input

• MIDI IN and OUT

• AUX IN

• L/L+R and R LINE OUT

• Two foot pedal connections

• USB TO DEVICE (USB Type-A)

• USB TO HOST (USB Type-C)

• Bluetooth Audio

• USB Audio interface

Yamaha PSR-SX620 Key Features

• 61-note Organ (FSB) keyboard with Initial Touch

• Five Touch Response settings

• 1,002 preset Voices

• 51 Drum/SFX Kits

• 480 XG Voices

• 137 Super Articulation Voices

• 34 MegaVoices

• 128-note maximum polyphony

• 450 accompaniment Styles

• Smart Chord

• Chord Looper

• Two assignable Live Control knobs

• Joystick Controller

• 4.3-inch TFT colour LCD display

• Approximately 380MB Expansion Voice memory

• Approximately 20GB maximum internal storage

• Bluetooth Audio

• Microphone input with vocal effects

• 16-track MIDI recording

• WAV audio recording and playback

• 226 Multi Pad banks with four pads per bank

• Eight Registration Memory buttons

• USB Type-C TO HOST connection

• USB Audio interface

• 15W + 15W amplification

• Two 12cm speakers

• L/L+R and R line outputs

• Dimensions: 993 × 404 × 143mm

• Weight: 8.1kg

Yamaha PSR-SX620 FAQs

What is the Yamaha PSR-SX620?

The Yamaha PSR-SX620 is a 61-note arranger workstation keyboard and the entry point to Yamaha's PSR-SX series. It combines instrument Voices, automatic accompaniment Styles, recording facilities, hands-on performance controls and built-in speakers in one compact instrument.

How many sounds does the Yamaha PSR-SX620 have?

The PSR-SX620 includes 1,002 preset Voices, 51 Drum/SFX Kits and 480 XG Voices. Its featured sounds include 137 Super Articulation Voices and 34 MegaVoices.

How many Styles are included with the Yamaha PSR-SX620?

The Yamaha PSR-SX620 includes 450 preset accompaniment Styles, comprising 416 Pro Styles, 33 Session Styles and one Free Play Style.

Does the Yamaha PSR-SX620 have touch-sensitive keys?

Yes. The PSR-SX620 has a 61-note Organ (FSB) keyboard with Initial Touch. Touch Response can be set to Normal, Soft 1, Soft 2, Hard 1 or Hard 2.

Does the Yamaha PSR-SX620 have Bluetooth?

Yes. The Yamaha PSR-SX620 includes Bluetooth Audio, allowing you to stream music wirelessly from a compatible device through the keyboard's built-in speaker system.

Can I connect a microphone to the Yamaha PSR-SX620?

Yes. The PSR-SX620 has a standard mono microphone input and built-in microphone processing comprising Noise Gate, Compressor and 3-band EQ.

Does the Yamaha PSR-SX620 have built-in speakers?

Yes. The PSR-SX620 has two 12cm speakers powered by 15W + 15W amplification. Its newly developed speaker system also incorporates an Internal BassPort.

What is Chord Looper on the Yamaha PSR-SX620?

Chord Looper allows you to record a chord progression and have the PSR-SX620 play it back repeatedly. This frees your hands for melody playing, improvisation, sound control or other parts of your performance. Up to eight chord sequences can be stored in each bank.

What is Smart Chord on the PSR-SX620?

Smart Chord lets you create a full chord for the accompaniment by playing only the root note, making it easier to perform with automatic accompaniment.

Can I add more sounds and Styles to the Yamaha PSR-SX620?

Yes. The PSR-SX620 supports Expansion Voices and Styles and provides approximately 380MB of Expansion Voice memory. Yamaha's Expansion Explorer app can be used to access, search, preview and manage compatible Expansion Content.

Can the Yamaha PSR-SX620 record my performances?

Yes. The PSR-SX620 supports 16-track MIDI recording as well as WAV audio recording at 44.1kHz, 16-bit stereo. Audio recordings can be up to 80 minutes per song.

Does the Yamaha PSR-SX620 have USB-C?

Yes. The USB TO HOST connection uses USB Type-C. The keyboard also provides a USB TO DEVICE Type-A connection and USB Audio functionality.

Can I connect the Yamaha PSR-SX620 to a PA system?

Yes. The Yamaha PSR-SX620 has dedicated L/L+R and R line outputs for connection to external speakers and PA systems. Yamaha has also upgraded the audio output circuitry for improved clarity and output quality.

How much does the Yamaha PSR-SX620 weigh?

The Yamaha PSR-SX620 weighs 8.1kg and measures 993mm wide × 404mm deep × 143mm high.

What comes with the Yamaha PSR-SX620?

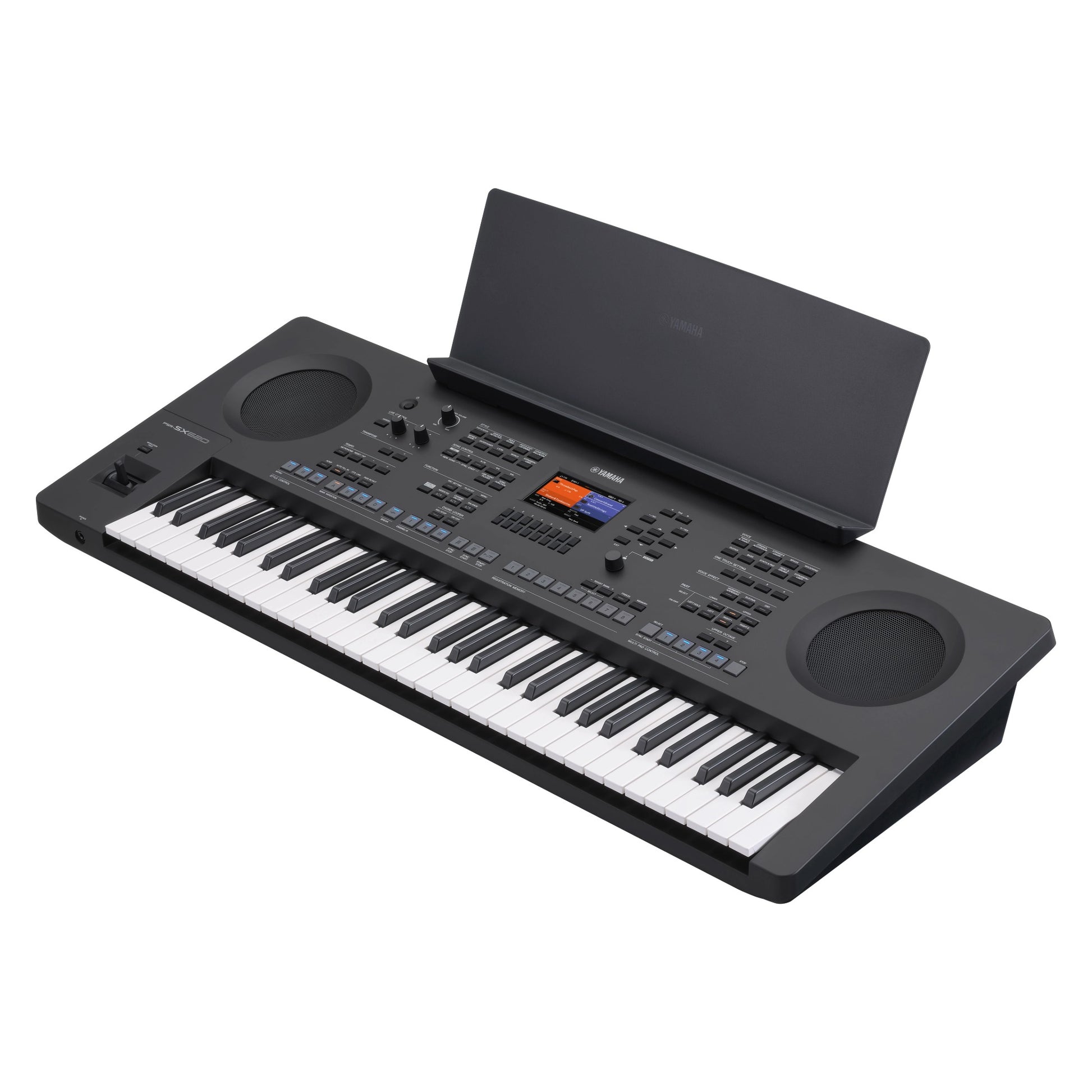

The PSR-SX620 is supplied with an Owner's Manual, Online Member Product Registration, music rest and PA-300C AC adaptor.

Is finance available on the Yamaha PSR-SX620?

Yes. Bonners Music offers finance options to help you spread the cost of your new Yamaha PSR-SX620. Available options and terms can be viewed when purchasing your keyboard.

Can I part-exchange my existing keyboard for a Yamaha PSR-SX620?

Bonners Music offers a part-exchange service for musical instruments, so you may be able to trade your existing instrument towards the purchase of a new Yamaha PSR-SX620. Find out more about part-exchange at Bonners.
