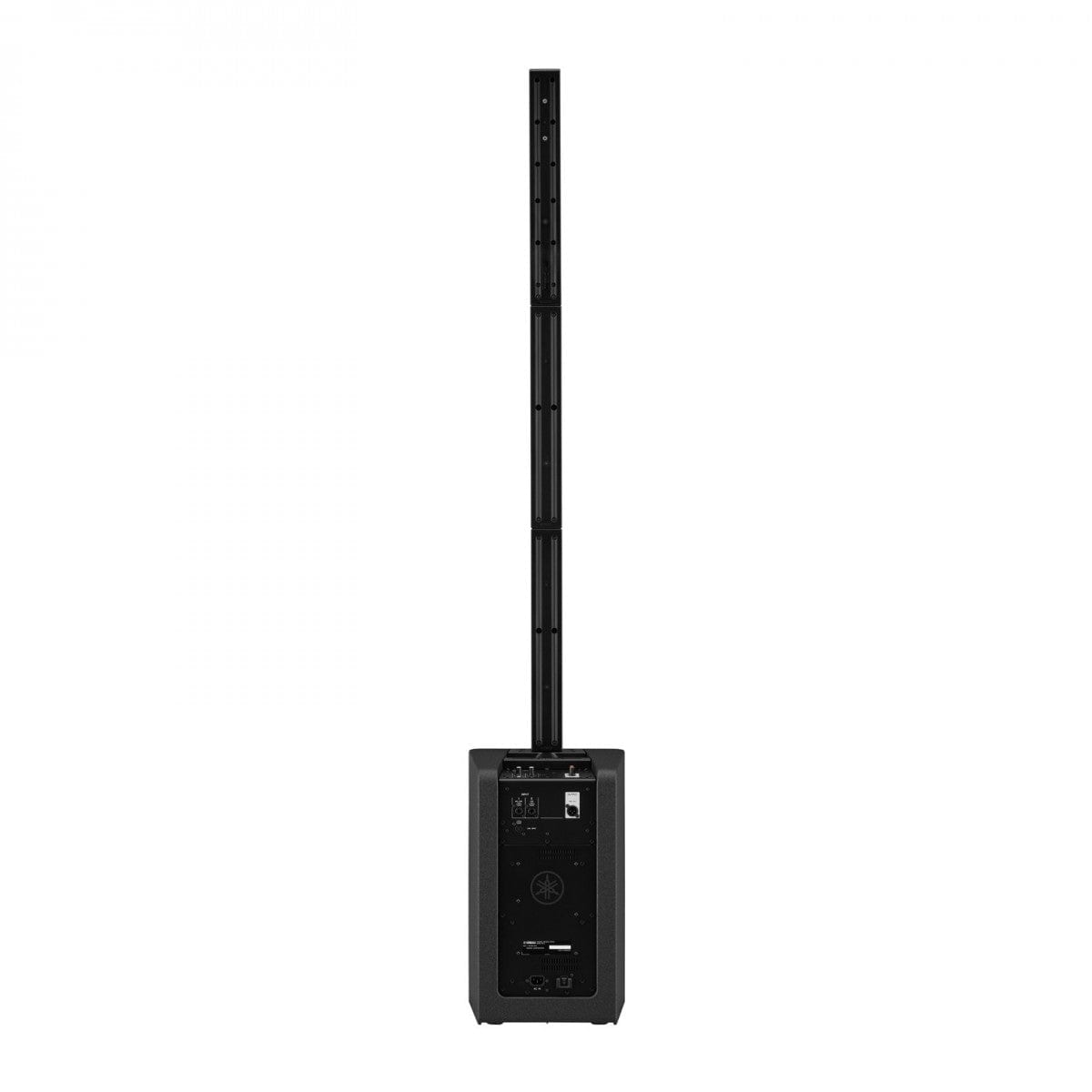

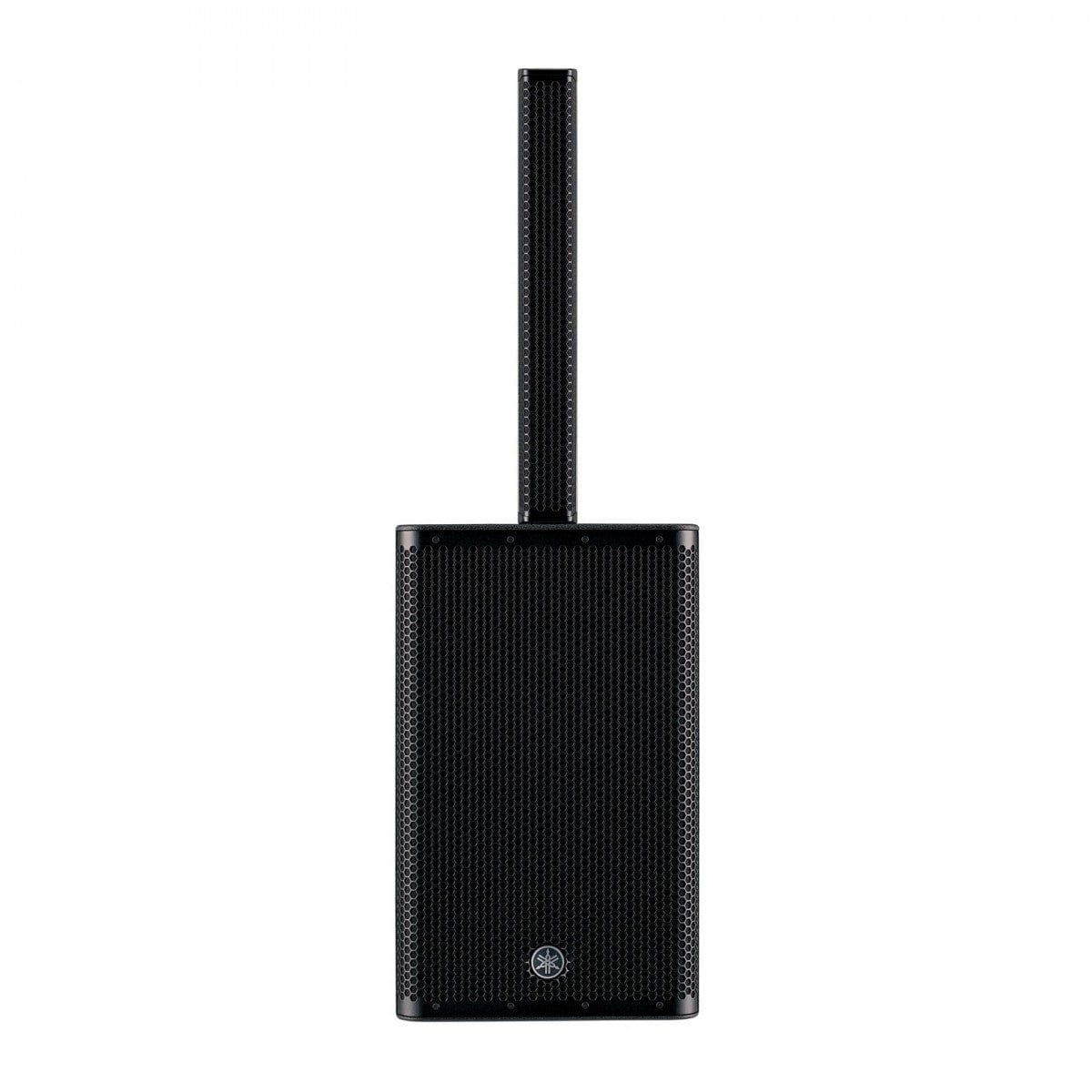

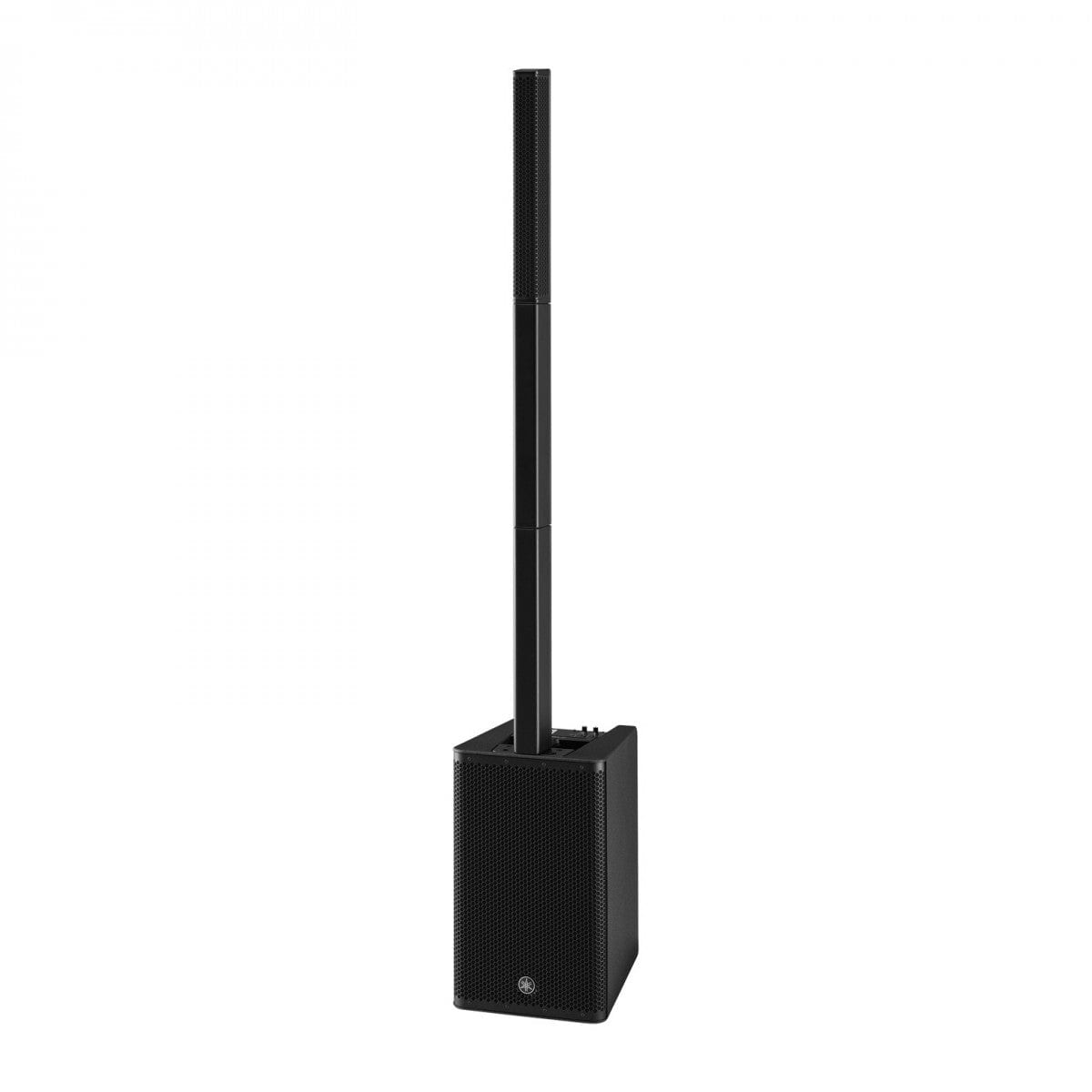

Yamaha Stagepas DXL1K Powered Loudspeaker
Yamaha Stagepas DXL1K Powered Loudspeaker
Yamaha Stagepas DXL1K Powered Loudspeaker
Yamaha Stagepas DXL1K Powered Loudspeaker
SKU:Product Code: CDXL1KUK
1 in stock
Price Match
Part Exchange
Yamaha Stagepas DXL1K Powered Loudspeaker
Yamaha Stagepas DXL1K Powered Loudspeaker
£1,265
Yamaha Stagepas DXL1K Powered Loudspeaker
PORTABLE POWERHOUSE
The DXL1K is a column-type powered speaker with a powerful 125dB SPL peak@1m sound output that belies its extremely portable slim body (a dedicated carrying cart is sold separately).
The combination of an easy setup procedure that only requires the line-array speaker to be attached to the top of the subwoofer cabinet, with the system expandability offered by the Link function, allows the DXL1K to be used in combination with a compact mixer or with the fully compatible STAGEPAS 1K mkII, creating a simple, compact, and high-quality PA system.
The DXL1K is a column-type powered speaker with a slim body and powerful sound. It can be used as the main speaker in a compact PA system, and is also perfect for use as an extension of a STAGEPAS 1K mkII system.
- 1100W power output
- Biggest in the class 12-inch subwoofer for low frequency
- 1.5-inch x10 slim line array speaker for high frequency

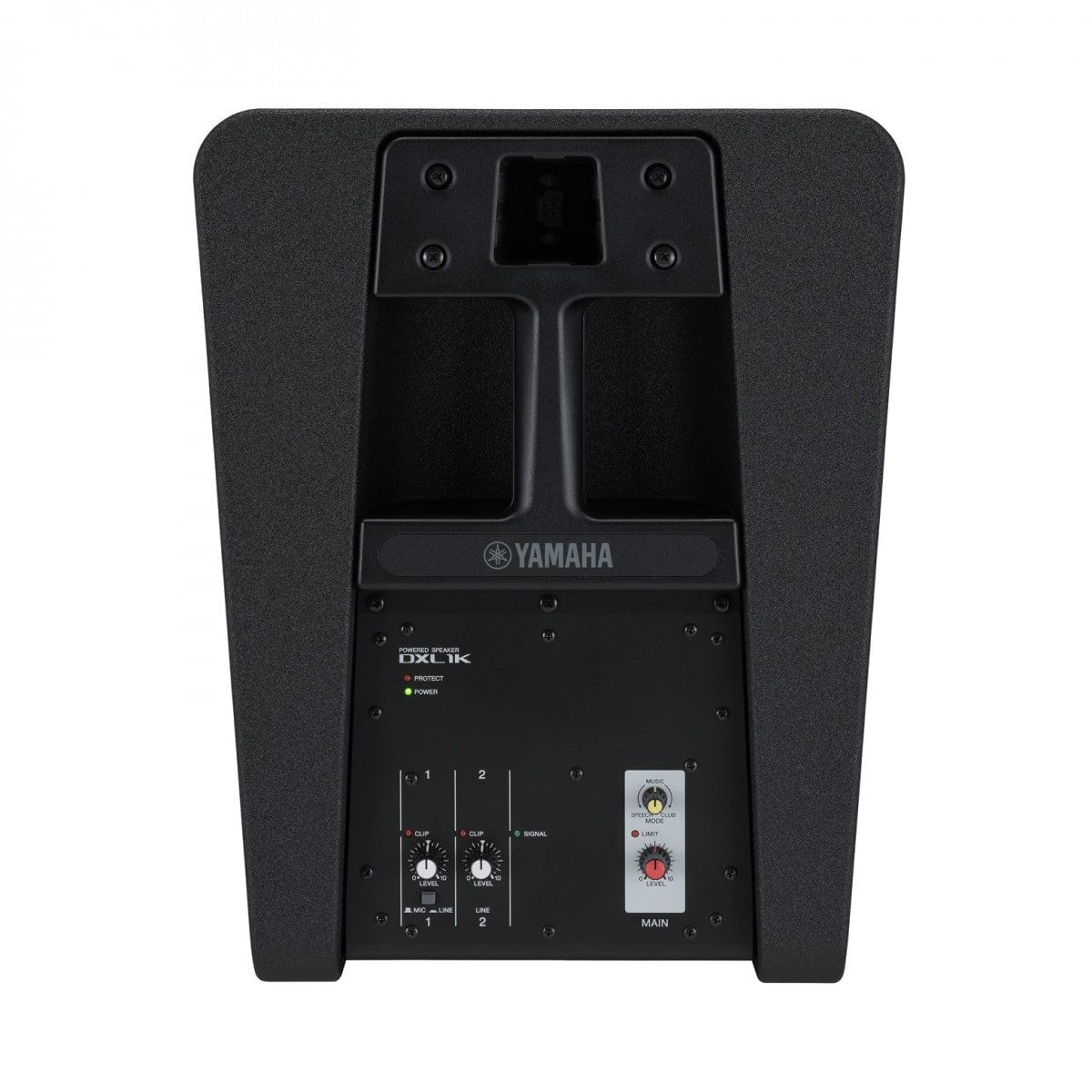

- Easy-to-use 2-Channel Mixer
- Link in/out for expanding system
- Dedicated cover included
- Optional dolly (DL-SP1K) for more portability
Compact Yet Powerful
Despite its lightweight and compact cabinet construction, the DXL1K features a high-output 1100 W amplifier powering a high-frequency array speaker system with 10 x 1.5-inch drivers and a large 12-inch subwoofer, producing best-in-class sound pressure levels of up to 125 dB SPL.
Offering an impressive 170° horizontal and 30° vertical coverage, the DXL1K delivers clear, high-quality sound consistently throughout a wide area.
Yamaha DXL1K: J-Curve Slim Line Array
The high-frequency speaker array is comprised of 10 small-diameter 1.5-inch speakers. By adopting a J-curve array configuration, the high-frequency unit achieves vertical coverage of 30 ° across a span of 170 °. With such a long, 10-driver array design the DXL1K can deliver clear, high quality sound consistently over longer distances, projecting uniform, high-quality sound from the front to the rear of the audience.
Yamaha DXL1K: Class-leading 12-inch “compact” subwoofer
The subwoofer features a 12-inch speaker unit which is hardly “compact,” and actually the largest in its class. Despite housing a 12-inch speaker unit that is the largest in its class, the DXL1K boasts the smallest cabinet on the market for a subwoofer of this size and power.
By incorporating Yamaha’s own Twisted Flare Port™ technology to reduce port wind noise that can occur with compact bass-reflex subwoofers, the low-end output is maximized, producing very deep, powerful, distortion-free bass.
Yamaha DXL1K: 1100W amplifier
Also at the top of its class for output power, the 1100W Class-D amplifier module is capable of delivering an impressive 125 dB SPL from the deceptively compact speaker cabinet. And just as importantly, we’ve leveraged Yamaha’s decades-long experience as a manufacturer of professional PA products, and innovator of related technologies to ensure that with great power comes great stability, and that the DXL1K maintains the same accurate, superior-quality sound even at high output.
Yamaha DXL1K: High-grade polyurea coating
The lightweight ABS cabinet of subwoofer features a high-grade polyurea coating to prevent wear and tear during transport. It is light enough to make the system extremely portable, but also rugged and scratch-resistant enough to withstand harsh performance environments.
Superior Utility and Portability
The DXL1K is not only capable of filling a wide area with high-quality and uniform sound, but also lightweight enough to be easily carried by anyone, simple enough to set up in about one minute, and durable enough to withstand harsh environments.
Yamaha DXL1K: Simple setup
Simply affix the 2 spacers and speaker unit into the subwoofer and setup is essentially done, with no cables, speaker stand, or additional gear required beyond the main unit. All you need is in the package.
Yamaha DXL1K: Expandable STAGEPAS systems
Linking a DXL1K and STAGEPAS 1K mkII provides greater coverage area and increased output power for large-scale performances. Both stereo and mono playback are supported, and when the STAGEPAS 1K mkII is set to mono, the inputs of the DXL1K and STAGEPAS 1K mkII can still be used (up to five mono inputs plus one stereo input).

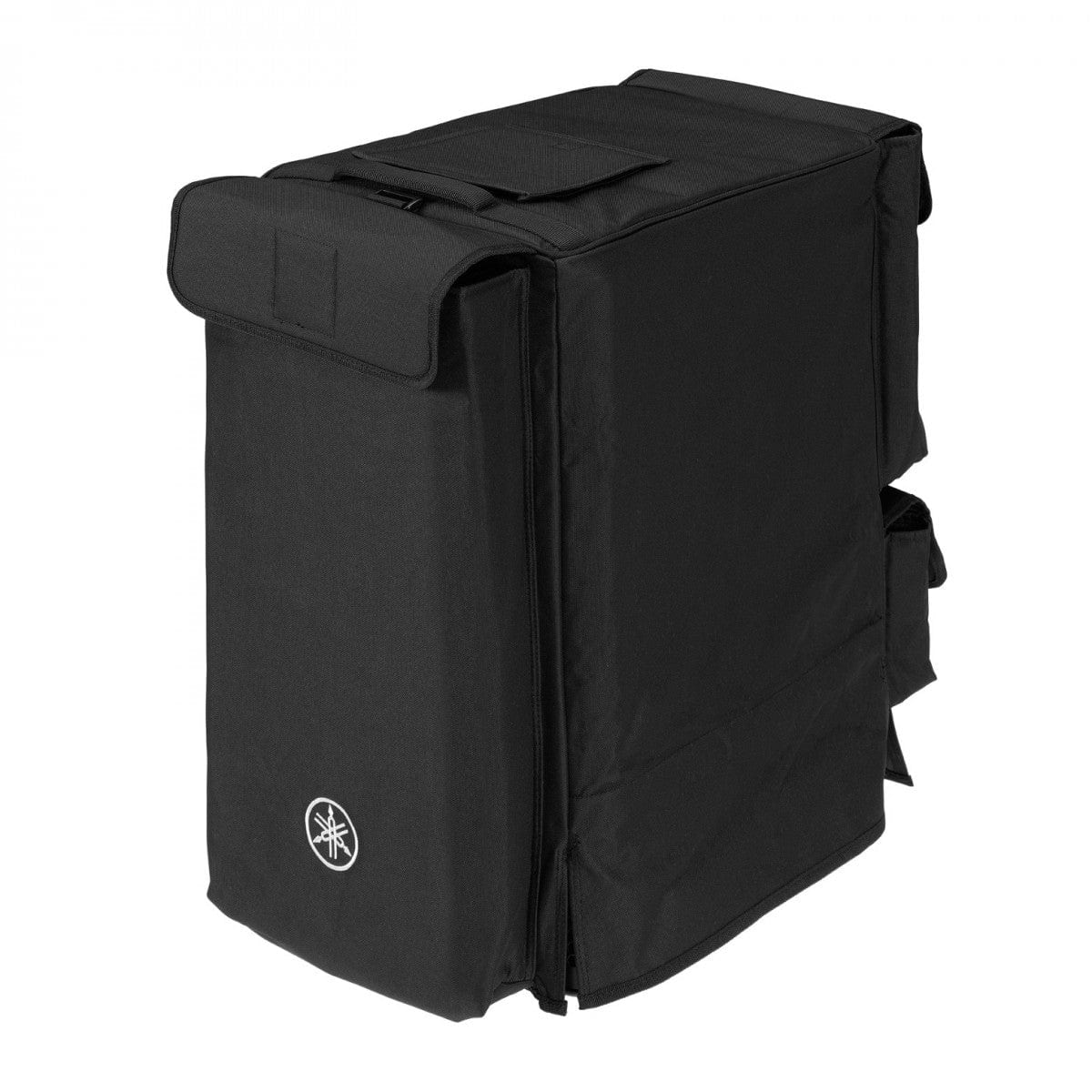

Yamaha DXL1K: Fitted cover included
The DXL1K comes with its own cover which, in addition to protecting the unit, has pouches for both spacers and speaker array as well as additional storage for accessories to further streamline system setup and teardown.
Yamaha DXL1K: Optional dolly (DL-SP1K)
Optional dolly (DL-SP1K)
An optional dedicated dolly allows for more convenient transportation — particularly useful for performers transporting additional gear and instruments. Featuring a simple, sturdy mechanism that locks down the speaker cover the lightweight dolly enables smooth, reliable transportation.
If you're unsure which instrument or product is right for you, nothing compares to seeing, touching, and playing it in person before making a purchase. When you visit a Bonners Music store, you can explore a wide selection of pianos, keyboards, guitars, and related products to help you make the perfect choice. Our friendly and knowledgeable staff are always on hand to help you if you have any questions. Experience this model firsthand at any of our stores listed below. Please note that the colour of the display model in our showroom may differ from what is shown on this page.
Eastbourne Guitar Store
Address:
Bonners Guitar Store, 9 Faraday Close Eastbourne East Sussex BN22 9BH
Telephone:
01323 639335| Frequency range (-10dB) 37 Hz - 20 kHz |
| Coverage area H170ﾟ x V30ﾟ |
| Crossover 240 Hz |
| Maximum output level (1m; on axis) 125 dB SPL |
| LF Powered subwoofer: 12” (30 cm) Cone |
| HF Line array speaker: 1.5” (3.8 cm) Cone x 10 |
| Amplifier class Class-D |
| Power rating: Dynamic 1100 W |
| Power consumption 25 W (Idle), 91 W (1/8 power) |
| Power requirements Depending on area of purchase: 100 V 50 Hz/60 Hz, 110-120 V 60 Hz, 220 V-240 V 50 Hz/60 Hz |
| Processors MODE (SPEECH/MUSIC/CLUB) |
| I/O connectors INPUT1: Combo x1 (mic/line), INPUT2: Combo x1 (line), LINK IN: XLR x1, LINK OUT: XLR x1 |
| Handle Top of powered subwoofer x1 |
| Dimensions (W x H x D) System: 334 x 2,000 x 418 mm (maximum), Line array speaker: 67 x 582 x 86 mm, Powered subwoofer: 334 x 550 x 418 mm, Spacer: 67 x 555 x 86 mm (each) |
| Weight System: 23.0 kg (maximum), Line array speaker: 1.8 kg, Powered subwoofer: 20.0 kg, Spacer: 0.6 kg (each) |
| Accessories Power cord x1, Cover x1 |
| Options Yamaha DL-SP1K (Dedicated dolly) |
