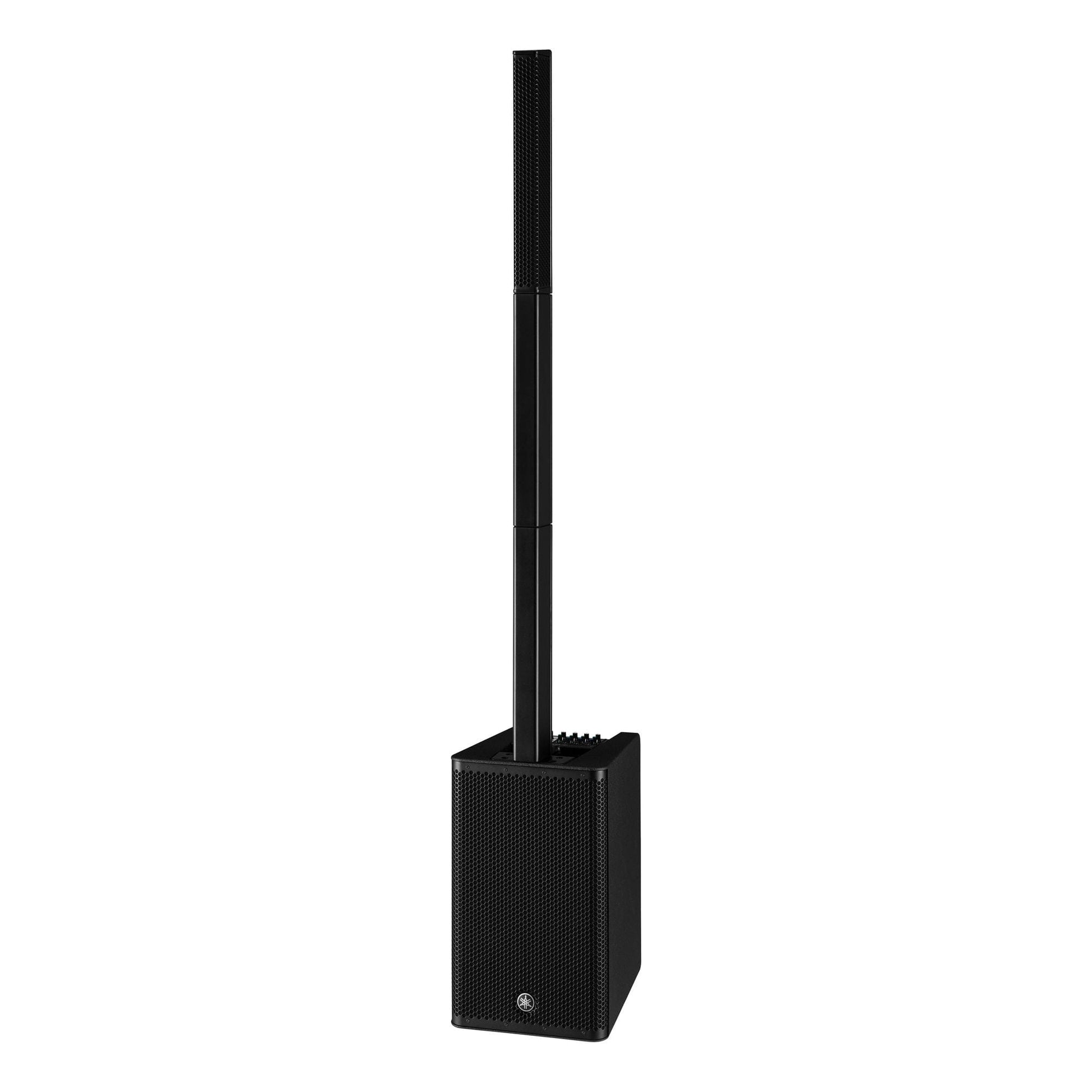

Yamaha Stagepas 1K MK2 Portable PA System
10 MONTHS 0% FINANCE
| Mixing channels 5 (Mono x3 + Stereo x1) |
| Input channel functions Hi-Z: CH2/3, 1-knob EQ: CH1-3/ST |
| Output channel functions MODE (SPEECH/MUSIC/CLUB) |
| Inputs Mono x3 (mic/line) + Stereo x1 (line) / Mono x2 (line), Link in x1 |
| Outputs Link out x1, Monitior out x1 |
| Bluetooth Bluetooth Ver.5.0, A2DP (SBC, AAC) |
| Control and others Reverb foot switch, STAGEPAS Controller (iOS/Android app) |
| On-board processors: DSP SPX digital reverb (4 program, parameter control) |
| Speaker type Powered subwoofer: Bass-reflex type, Line array speaker: Enclosed |
| Frequency range (-10dB) 37 Hz - 20 kHz |
| Coverage area H170ﾟ x V30ﾟ |
| Crossover 240 Hz |
| Maximum output level (1m; on axis) 125 dB SPL |
| Components Powered subwoofer: 12” (30 cm) Cone Line array speaker: 1.5” (3.8 cm) Cone x 10 |
| Line array speaker: 1.5” (3.8 cm) Cone x 10 Line array speaker: 1.5” (3.8 cm) Cone x 10 |
| Amplifier class Class-D |
| Power rating 1100 W |
| Power consumption 25 W (Idle), 91 W (1/8 power) |
| Handle Top of powered subwoofer x1 |
| Dimensions (W x H x D) System: 334 x 2,000 x 418 mm Line array speaker: 67 x 582 x 86 mm Powered subwoofer: 334 x 550 x 418 mm Spacer: 67 x 555 x 86 mm (each) |
| Weight System: 23.0 kg Line array speaker: 1.8 kg Powered subwoofer: 20.0 kg Spacer: 0.6 kg (each) |
| Accessories Power cord x 1, Cover x 1 |
| Optional Accessories Yamaha DL-SP1K (Dedicated dolly), FC5 (foot switch for reverb ON/OFF) |
Yamaha Stagepas 1K MK2 Portable PA System
More Practical. More Professional. More Powerful.
The STAGEPAS 1K mkII is an all-in-one portable PA system that allows you to quickly and easily transform any location into your stage, delivering professional-level audio performance with a simple setup that enables aspiring artists to focus on their music and get the most out of their performances. Adding an even higher sound pressure level and more flexible remote functionality than its predecessor, the second-generation STAGEPAS 1K mkII boasts the same combination of lightweight cabinet design, professional mixing functions, and simple operability, that has elevated the STAGEPAS all-in-one package above all other portable PAs. By adopting a concert-quality mixer and speaker, we have raised the bar for portable PA by utilizing Yamaha’s unique experience and know-how developed over decades of producing innovative, professional audio equipment from every stage of music engineering and production.
1100W, 125 dB SPL peak@1m, portable PA system with 5 channel digital mixer, 12-inch subwoofer, 1.5-inch x10 line array speaker, a Bluetooth input, SPX digital reverbs, Priority Ducker and 1knob EQ and multi band comp for master output.
- 1100W power output
- Biggest in the class 12-inch subwoofer for low frequency
- 1.5-inch x10 slim line array speaker for high frequency

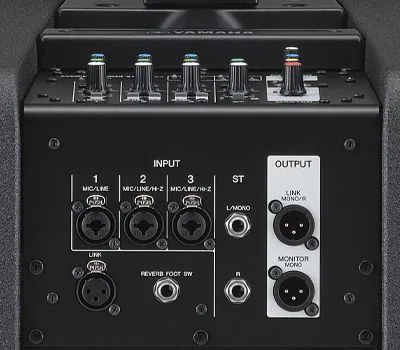

- Digital mixer (3 mono mic/line + 1 stereo line)
- Multi band comp “MODE” for master output
- 1-knob EQ per channel
- High resolution SPX digital reverb (4 types, parameter control)
- Priority Ducker for stereo channel
- 4 band PEQ per channel via remote control APP “STAEGPAS Controller”
- 2x Hi-Z (high impedance) inputs
- Link out and monitor out
- Dedicated cover included
- Optional reverb foot switch (FC5)
- Optional dolly (DL-SP1K) for more portability

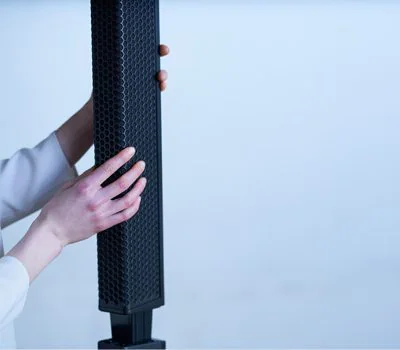

Simple setup and simple control allow you to focus on your performance
The STAGEPAS 1K mkII comes equipped with a wealth of sound adjustment features, including 1-knob EQ to perform multiple EQ processes simultaneously, and MODE which allows you to adjust optimized compression settings like “Speech” or “Music” to match various applications. All adjustments can be done simply with one knob, making the perfect mix fast and easy without a complex workflow and letting you focus on your performance.
Best-in-Class Compact Power
A 1100 W amplifier drives the array speaker with 10 small-diameter 1.5-inch units, as well as a class-leading 12-inch subwoofer. The impressive 170° horizontal and 30° vertical coverage area delivers consistent performance over long distances, projecting uniform, high-quality sound from the front to the rear of the audience.
Compact yet powerful
Despite its lightweight and compact cabinet construction, the STAGEPAS 1K mkII features a high-output 1100 W amplifier powering a high-frequency array speaker system with 10 x 1.5-inch drivers and a large 12-inch subwoofer, producing best-in-class sound pressure levels of up to 125 dB SPL. An impressive 170° horizontal and 30° vertical coverage delivers clear, high-quality sound consistently throughout a wide listening area.

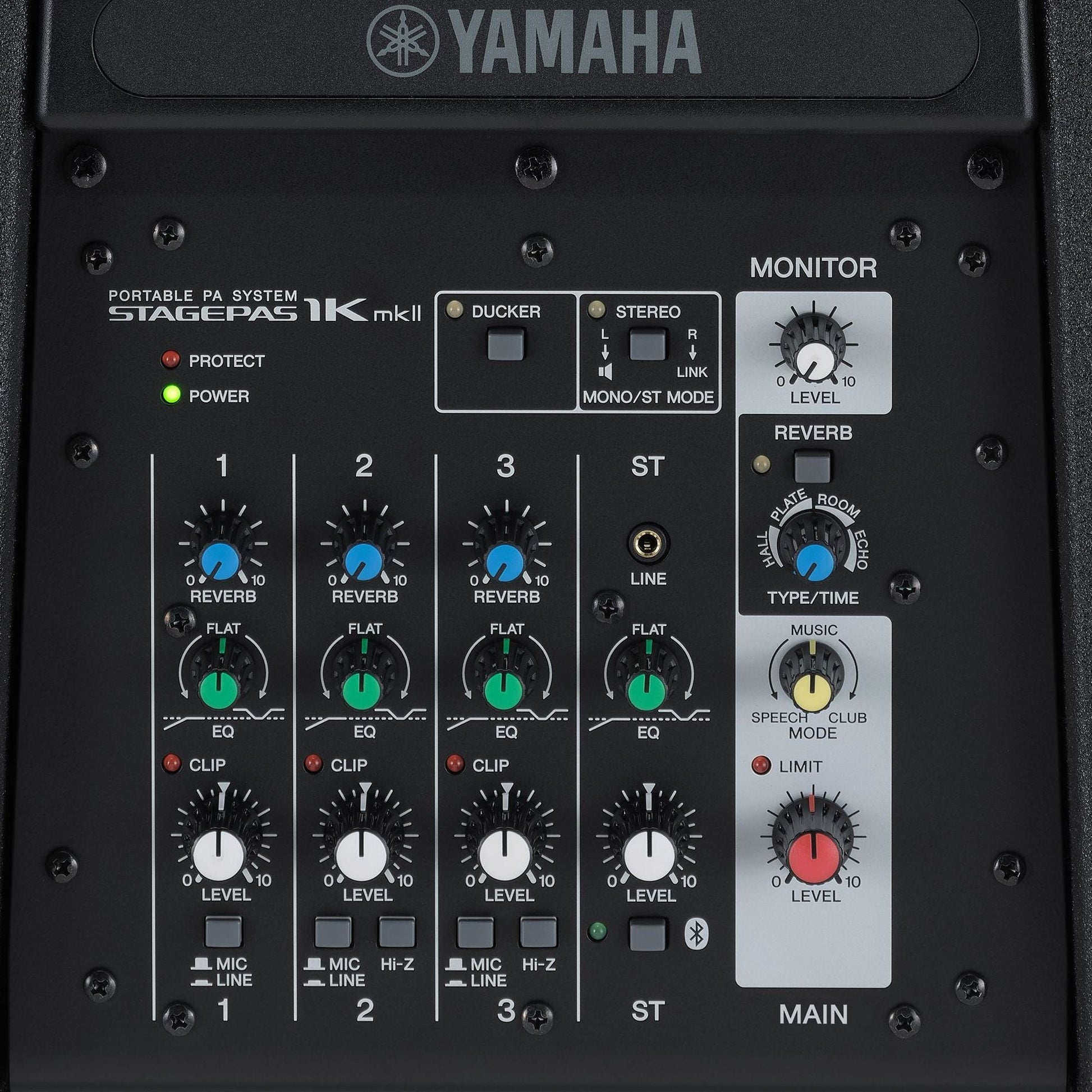

Professional control with a single knob
1. SPX the standard digital reverb
One knob operation gives you access to four types of Yamaha's proprietary SPX reverb settings—perfect for vocals and acoustic instruments. Simply turn the knob to change the reverb type and time, and then you’re ready to apply just the right amount of high-resolution effect to each channel.
2. 1-knob channel EQ
Whether turning to the left to cut unnecessary low-end frequencies for speeches, or turning to the right to emphasize the bottom and high end for band performances, this innovative equalizer can dial in the perfect sound adjustment with a simple turn of the knob.
3. “MODE” for master output
The multiband compressor adjusts optimized compression settings to suit various applications. By selecting MUSIC, SPEECH or CLUB MODE which is closest to your application, you can add a more professional edge to your sound without having to learn difficult compression/audio engineering principles.
Priority Ducker
| Mixing channels 5 (Mono x3 + Stereo x1) |
| Input channel functions Hi-Z: CH2/3, 1-knob EQ: CH1-3/ST |
| Output channel functions MODE (SPEECH/MUSIC/CLUB) |
| Inputs Mono x3 (mic/line) + Stereo x1 (line) / Mono x2 (line), Link in x1 |
| Outputs Link out x1, Monitior out x1 |
| Bluetooth Bluetooth Ver.5.0, A2DP (SBC, AAC) |
| Control and others Reverb foot switch, STAGEPAS Controller (iOS/Android app) |
| On-board processors: DSP SPX digital reverb (4 program, parameter control) |
| Speaker type Powered subwoofer: Bass-reflex type, Line array speaker: Enclosed |
| Frequency range (-10dB) 37 Hz - 20 kHz |
| Coverage area H170ﾟ x V30ﾟ |
| Crossover 240 Hz |
| Maximum output level (1m; on axis) 125 dB SPL |
| Components Powered subwoofer: 12” (30 cm) Cone Line array speaker: 1.5” (3.8 cm) Cone x 10 |
| Line array speaker: 1.5” (3.8 cm) Cone x 10 Line array speaker: 1.5” (3.8 cm) Cone x 10 |
| Amplifier class Class-D |
| Power rating 1100 W |
| Power consumption 25 W (Idle), 91 W (1/8 power) |
| Handle Top of powered subwoofer x1 |
| Dimensions (W x H x D) System: 334 x 2,000 x 418 mm Line array speaker: 67 x 582 x 86 mm Powered subwoofer: 334 x 550 x 418 mm Spacer: 67 x 555 x 86 mm (each) |
| Weight System: 23.0 kg Line array speaker: 1.8 kg Powered subwoofer: 20.0 kg Spacer: 0.6 kg (each) |
| Accessories Power cord x 1, Cover x 1 |
| Optional Accessories Yamaha DL-SP1K (Dedicated dolly), FC5 (foot switch for reverb ON/OFF) |
