Chord UHF Wireless Microphone System; Dual Handheld / Headset
Chord UHF Wireless Microphone System; Dual Handheld / Headset
Chord UHF Wireless Microphone System; Dual Handheld / Headset
Chord UHF Wireless Microphone System; Dual Handheld / Headset
SKU:Product Code: 171.907UK
Awaiting Stock - Pre Order
Price Match
Part Exchange
Chord UHF Wireless Microphone System; Dual Handheld / Headset
Chord UHF Wireless Microphone System; Dual Handheld / Headset
£149
Chord UHF Wireless Microphone System; Dual Handheld / Headset

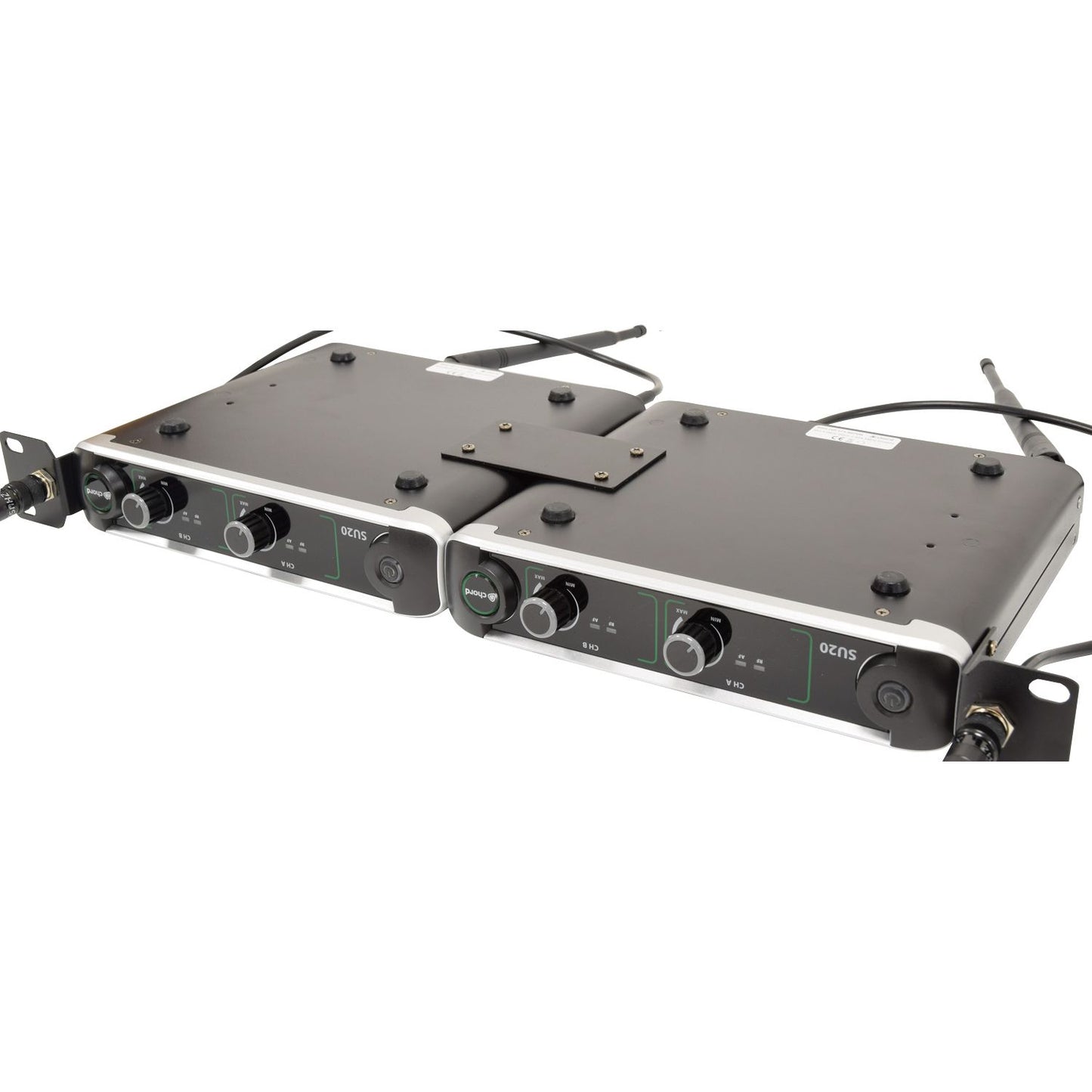

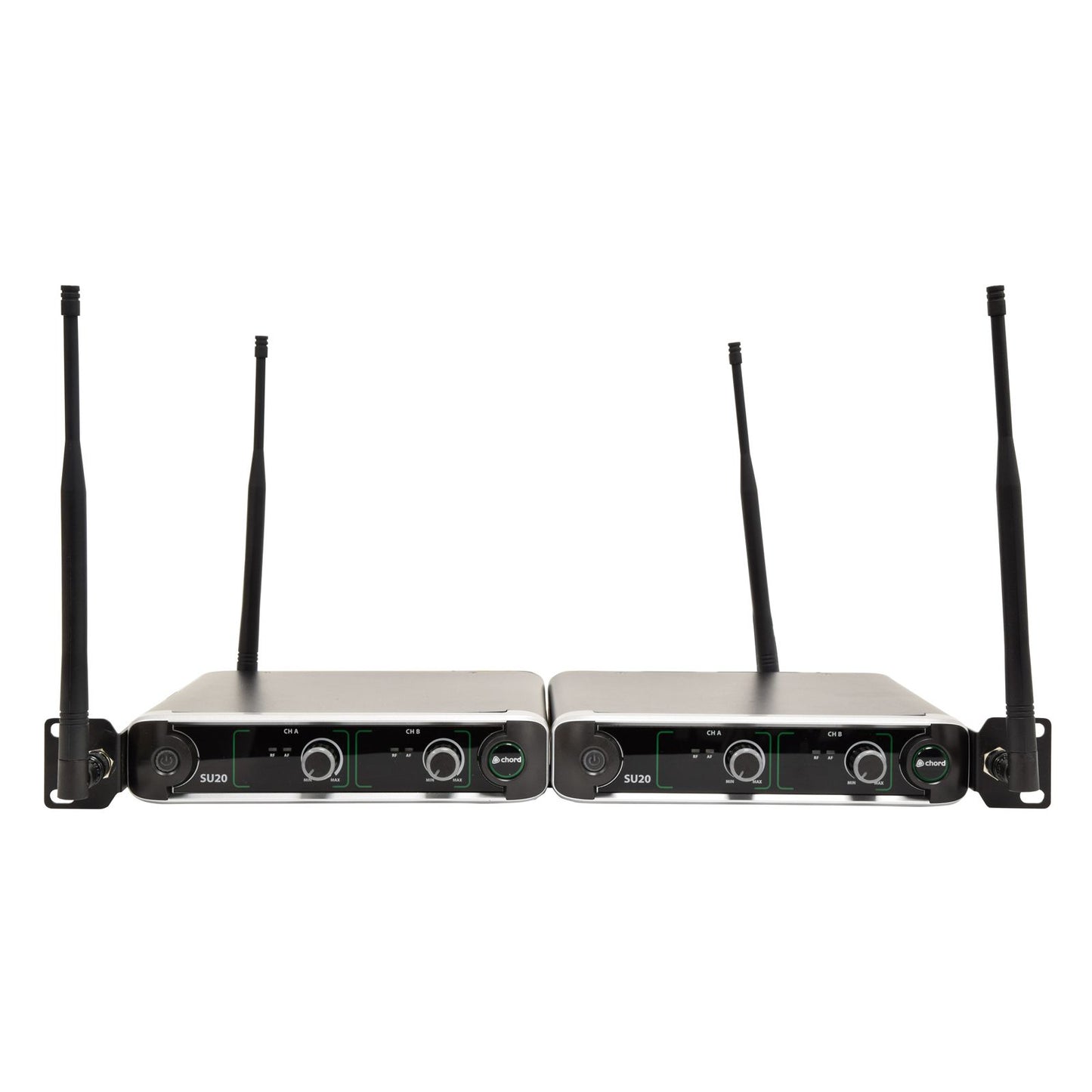

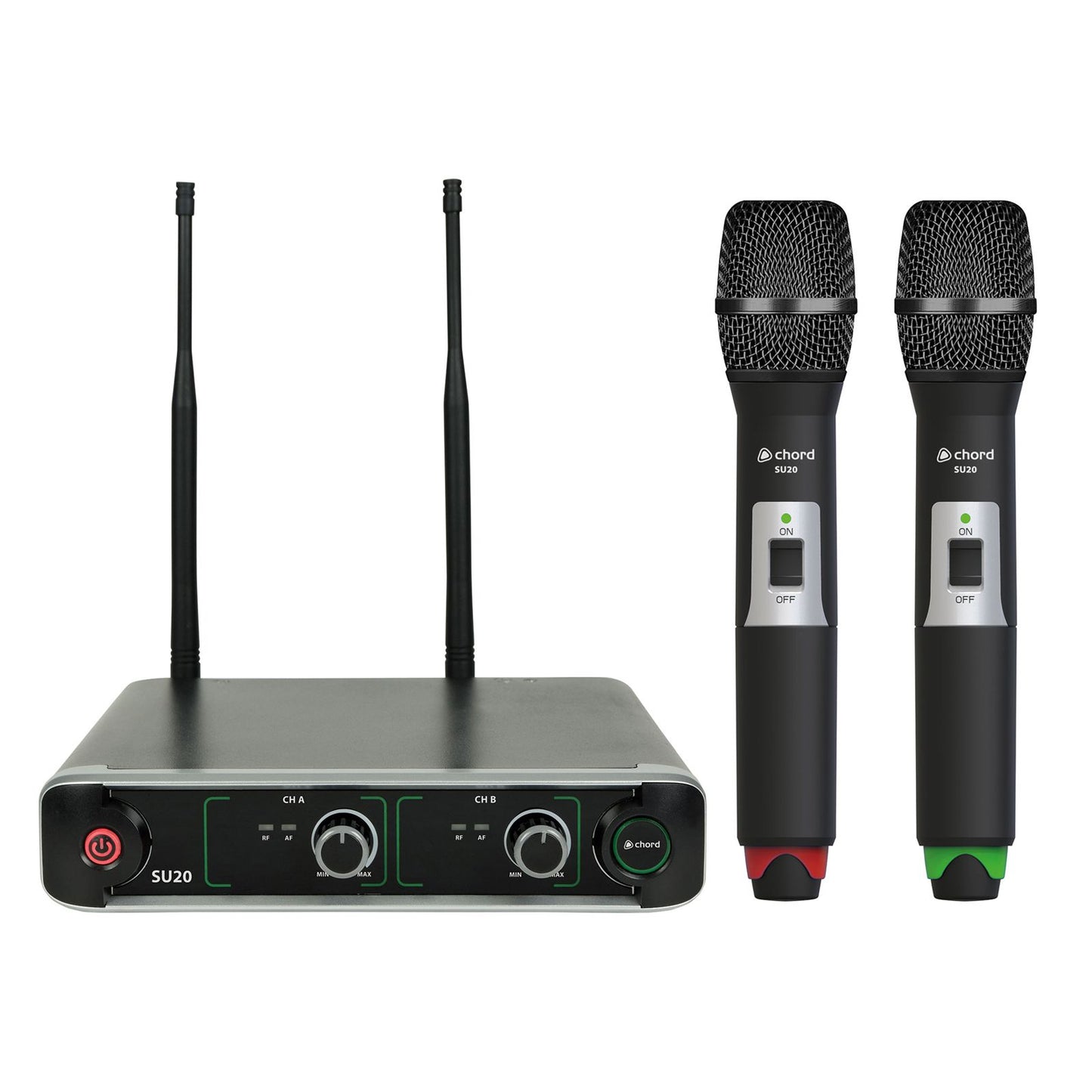

Dual UHF wireless microphone system with a compact receiver, supplied with hardware for mounting 1 or 2 units into a 1U 19" rack space. BNC cables and detachable antennas are provided for rear or front mounting as required. Each transmitter is powered by 2 x AA batteries and the beltpack version is supplied with both neckband and lavalier microphones. Output is provided individually on balanced XLR connectors or mixed to a single 6.3mm jack socket. Providing all the functionality of a dual UHF system in a compact half-rack format.
- Up to 2 sets (4 microphones) can be used together
- Available in handheld or beltpack versions with 2 carrier frequency options
- Front or rear mountable antennas
- Compact half-rack receiver
- Supplied with power adaptor and 4 x AA batteries
In the box
The box for this item contains :

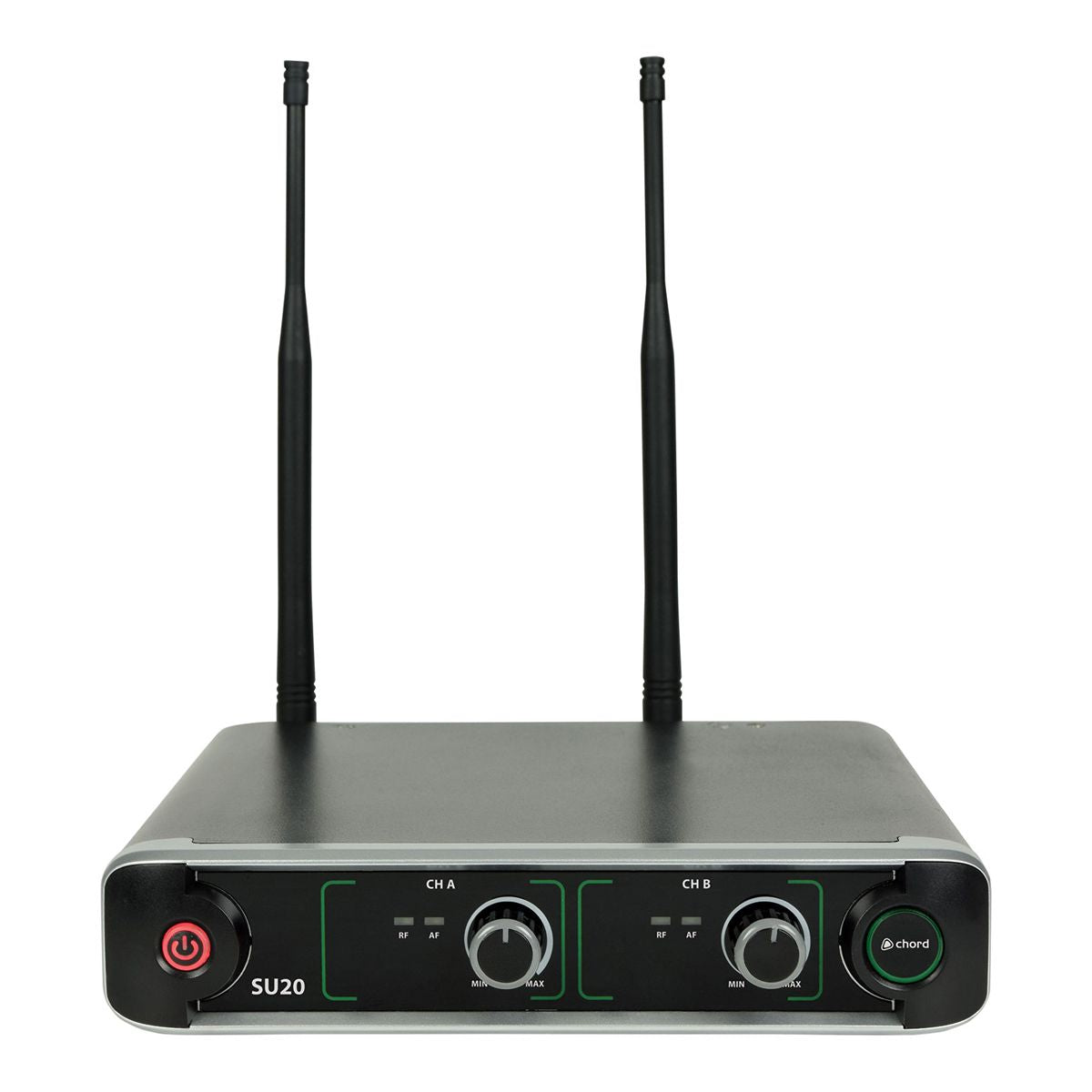

- SU20 half-rack dual UHF receiver
- 1 x short rack ear
- 1 x long rack ear
- 1 x coupling plate for 2 receivers
- 2 x BNC antennas
- 2 x BNC antenna extension leads

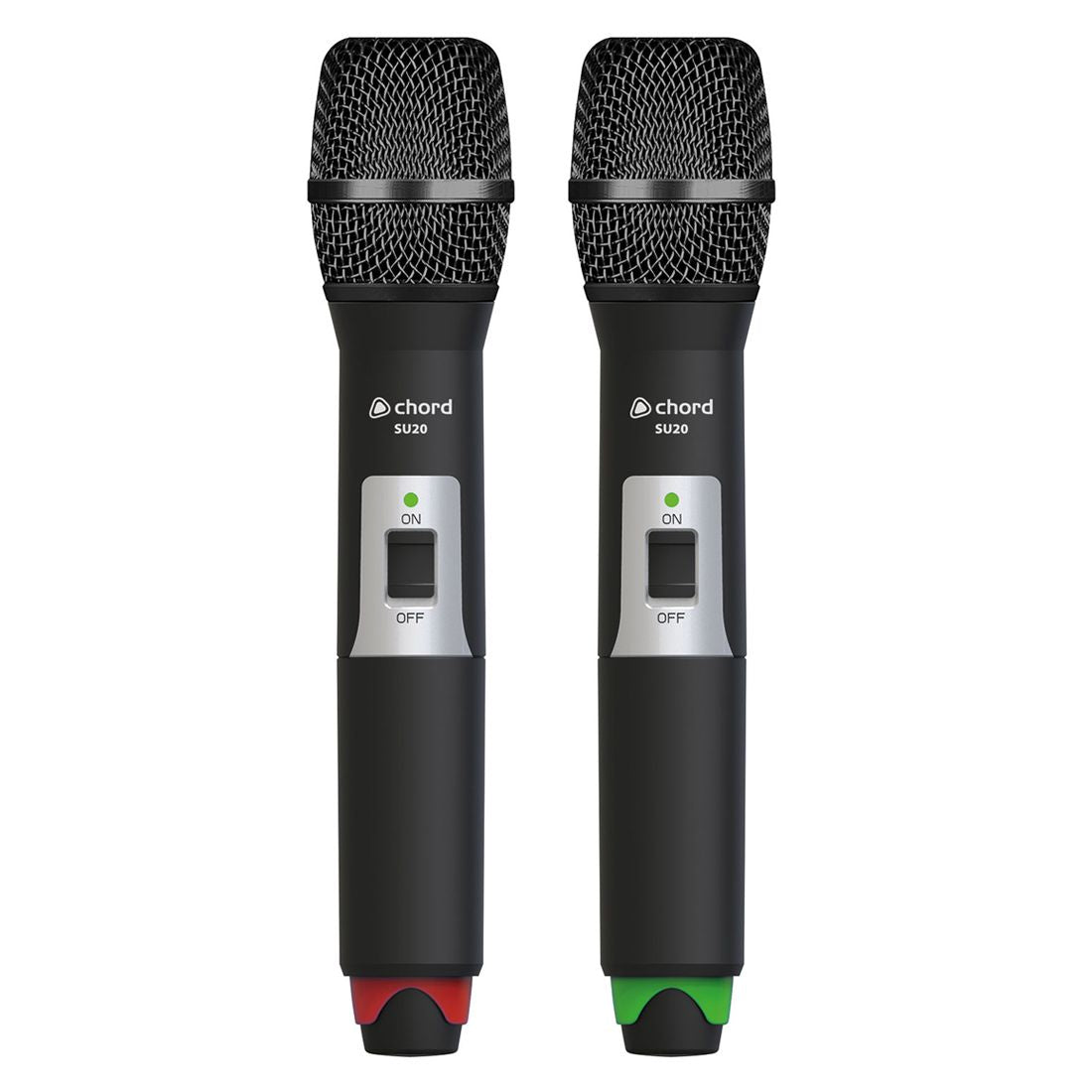

- 2 x handheld transmitters or beltpacks with neckband & lavalier mics
- 14Vdc 350mA power adaptor
- 6.3mm jack lead
| Power supply 14Vdc 350mA (adaptor supplied) |
| Antenna connection BNC |
| Batteries 4 x AA (2 per transmitter) included |
| Range 60m |
| Microphone Polar pattern Cardioid (handheld, neckband or lavalier) |

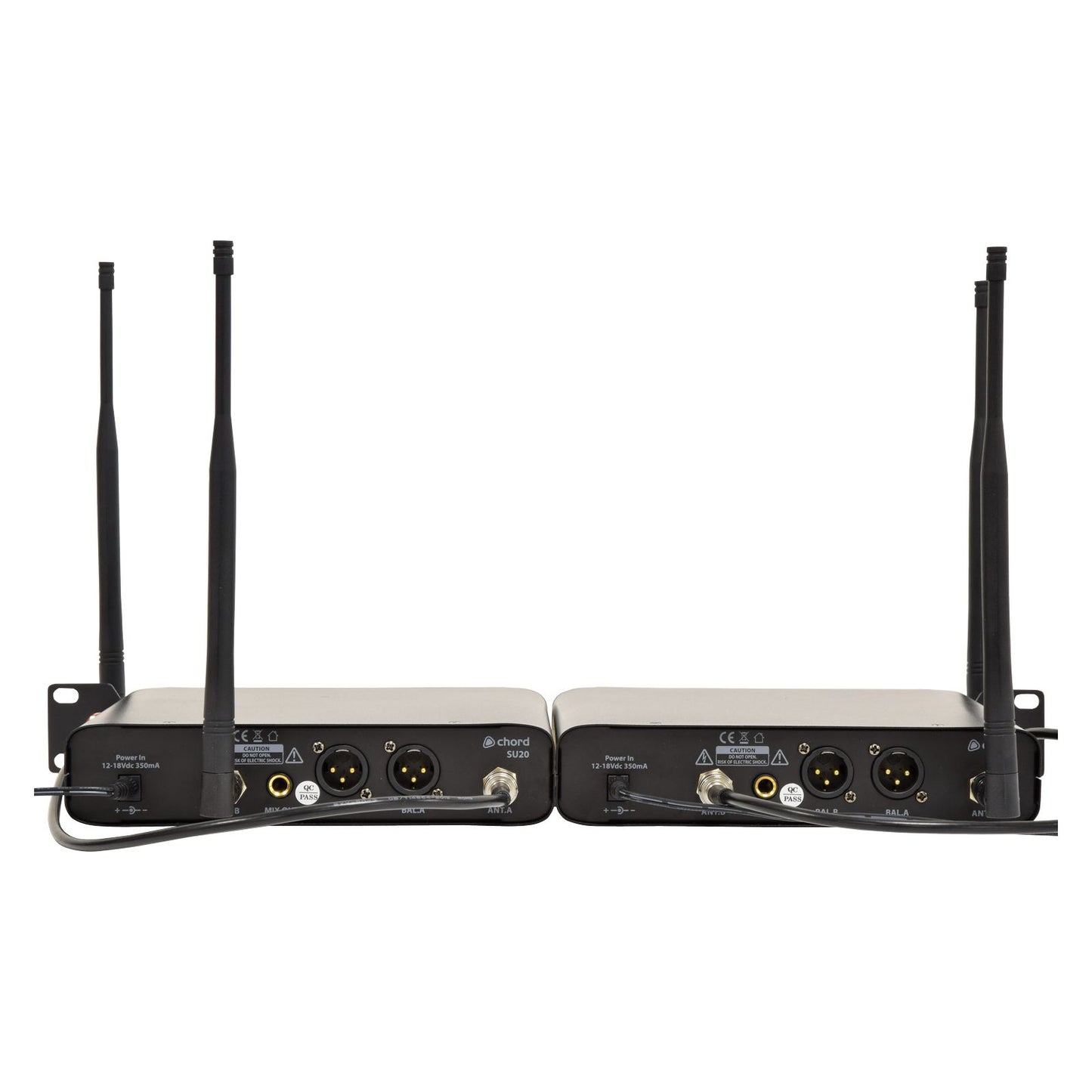

| Output connections 2 x balanced XLR, 1 x unbalanced 6.3mm jack |
| Output impedance 2.2k Ohms |
| Output level 400mV (balanced), 200mV (unbalanced) |
| Frequency response 50Hz - 18kHz (±3dB) |
| S/N ratio >80dB |
| THD <0.5% @ 1kHz |
| Dimensions receiver 203 x 187 x 42mm |
| Weight receiver 845g |
