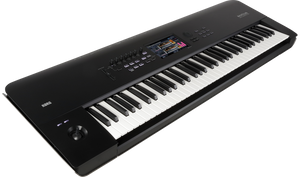

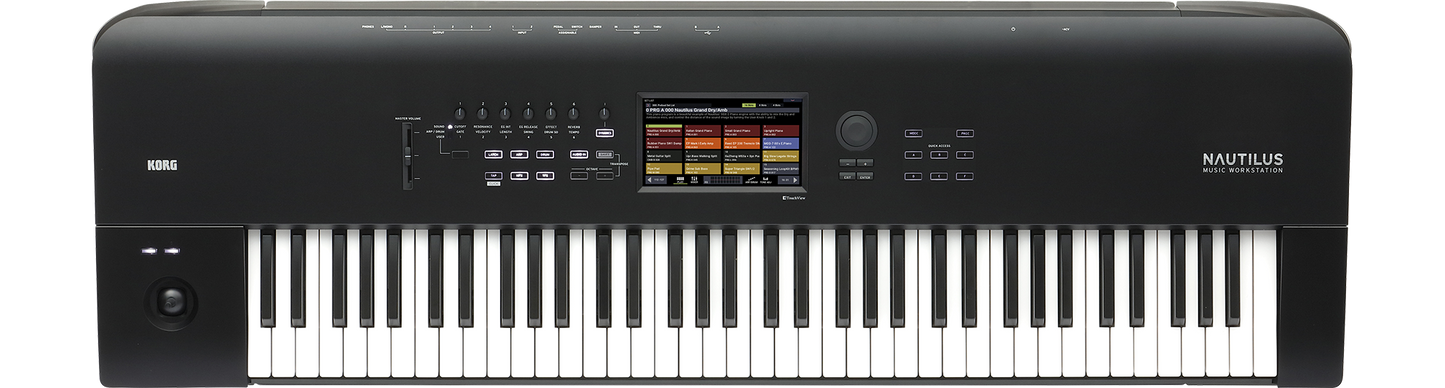

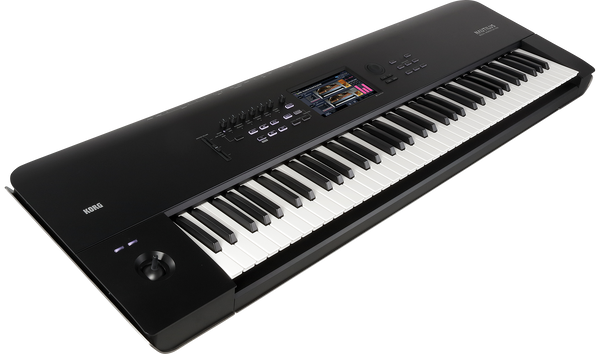

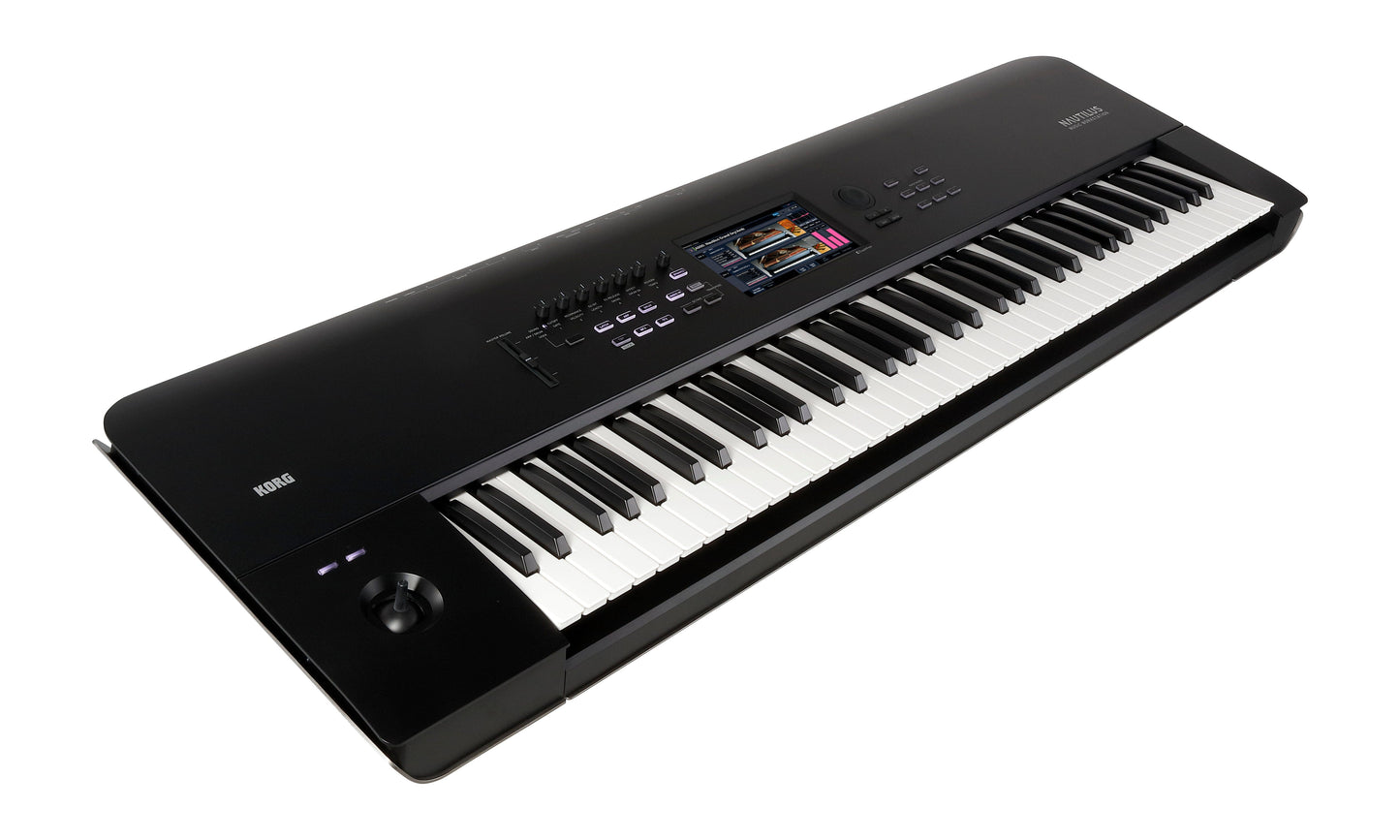

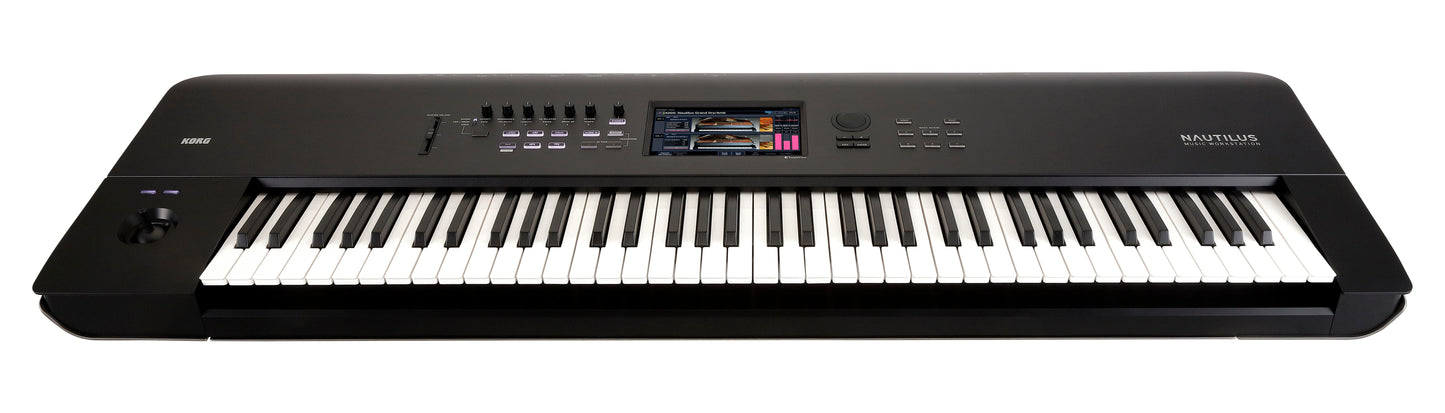

Korg NAUTILUS 73 Keyboard Workstation with FREE M1 Sound Pack Download
10 MONTHS 0% FINANCE
- Korg Nautilus Features
- Keyboard
- 88 key: RH3 (Real Weighted Hammer Action 3), A - C
73 key: Natural Touch Semi Weighted, C - C
61 key: Natural Touch Semi Weighted, C – C
Velocity sensitive is supported, after touch is not supported.
Tone Generator
- Synthesis Types: 9
SGX-2: Premium Piano (Acoustic Piano)
EP-1: MDS Electric Piano (Electric Piano)
HD-1: High Definition Synthesizer (PCM)
AL-1: Analog Synthesizer (Analog Modeling)
CX-3: Tonewheel Organ (Tonewheel Organ Modeling)
STR-1: Plucked String (Physical Modeling)
MOD-7: Waveshaping VPM Synthesizer (VPM Synthesis)
MS-20EX: Component Modeling Technology (Analog Modeling)
PolysixEX: Component Modeling Technology (CMT Analog Modeling)
- Maximum Polyphony
- SGX-2: 100 voices*3, EP-1: 104 voices, HD-1: 140 voices, AL-1: 80 voices, CX-3: 200 voices, STR-1: 40 voices, MOD-7: 52 , voices, MS-20EX: 40 voices, PolysixEX: 180 voices,
- Preset PCM: RAM 496 MB / DISK 2.3G (ROM 1,771 Multisamples, 3,955 Drumsamples)
- Build-in Expansion PCM Libraries
- EXs301: German2 D Piano, EXs302: Italian F Piano, EXs303: Japanese Upright U Piano, EXs304: Prepared Piano, EXs305: Historical Keyboards, EXs306: Vintage Keyboards 2, EXs307: Strings & Synths, EXs308: Guitar Collection, EXs309: Bass Collection, EXs310: World Essence, EXs311: Background Loops, EXs312: SFX & Hits, EXs313: Found Percussions, EXs314: Expansion Drums
- PCM RAM Capacity: Approx. 2GB *4
- Wave Sequences: 598 User memory, 377 Preload
SGX-2 Program
- Premium Piano
- Full key stereo sampling, Chromatically sampled at up to 12 velocity levels, no looping.
Damper resonance and mechanical noise are reproduced.
Una Corda sample support
- PCM
- EXs301 – German2 D Piano, 12 velocity levels, includes Ambience Piano type/samples, EXs302 – Italian F Piano, 12 velocity levels, no Una Corda samples, EXs303 – Japanese Upright U Piano, 8 velocity levels, Exs304 – Prepared Piano, 1-4 velocity levels
- Piano Type
- 128 (With the factory settings, the 64 varieties of EXs6: German D Piano, EXs7: Japanese C Piano, EXs12: SGX-1 Austrian D Piano, EXs17: Berlin D Piano do not produce sound. The options must be downloaded.
- Oscillator Control
- Damper Resonance, Damper Noise, Mechanical Noise, Note Release, String Resonance, Una Corda, EP-1 Program
- MDS Electric Piano
- Tine and reed-type electric pianos powered by Multi-Dimensional Synthesis (MDS), and vintage effects.
- Electric Piano Model Types 7
Tine EP I Early, Tine EP I Late, Tine EP II, Tine EP V, Tine EP DMP, Reed EP200, Reed EP200A
- Oscillator Control
- Harmonic Sound Level, Attack Noise, Level, Release Noise Level, Attack Brightness, Hammer Width
- Panel Control
- Tine Type: Preamp Volume, Tone (Treble, Bass), Vibrate (On/Off, Intensity, Speed), Amp/Cabinet (On/Off, Drive)
Reed Type: Preamp Volume, Tone (Treble, Bass), Vibrate (Intensity, Speed), Amp/Cabinet (On/Off, Drive)
- Effect Types 9
Small Phase, Orange Phase, Black Phase, Vintage Chorus, Black Chorus, EP Chorus, Vintage Flanger, Red Comp, VOX Wah
HD-1 Program
- Advanced Vector Synthesis
- Control oscillator volumes and synthesis & effects parameters via the Vector Joystick and the tempo-synchronized Vector Envelope.
- Structure
- Single: only OSC1, Double: OSC1 and OSC2.
Double mode lets you layer two completely separate synth voices, each with their own velocity-switched oscillator, dual filter, EGs, LFOs, etc.
Drums: One drum kit, Double Drums: Two drum kits.
- Oscillators
- 8 velocity zones per oscillator, with switching, crossfades and layering
Each zone can play mono or stereo Multisamples or Wave Sequences
- Filters: Two multi-mode filters per voices (low-pass, high-pass, band-pass and band-reject), Four-mode filter routings (single, serial, parallel and 24dB mode)
- Driver: Per voice non-linear driver and low boost circuit
- EQ: Three bands, with sweep-able mid
- Modulation
- Three envelope generators, two LFOs per voice, common LFO, four key tracking generators, AMS (Alternate Modulation Source), two AMS mixers
- Quick Layer / Split function
EXi Program Common
- Advanced Vector Synthesis
- Control oscillator volumes and synthesis & effects parameters via the Vector Joystick and the tempo-synchronized Vector Envelope
- Modulation
- Common Step Sequencer, AMS (Alternate Modulation Source), Common LFO, 2 Key Tracking Generators
- EQ: Three bands, with sweep-able mid, Quick Layer / Split function
AL-1 Program
- Oscillators
- Ultra-low-aliasing oscillators, OSC1, OSC2, Sub-oscillator and noise generator; ring modulation, FM and Sync
- Audio Input
- External audio can be processed through the ring modulator, filter, driver, amp, and EQ
- Filters
- Two multi-mode filters (low-pass, high-pass, band-pass and band-reject) with four types of filter routings (single, serial, parallel and 24dB mode), Multi Filter mode
- Driver
- Per-voice non-linear driver and low boost circuit
- Modulation
- Five Envelope generators, four per-voice LFOs, two AMS Mixers; Per-voice Step Sequencer
CX-3 Program
- Tonewheel Organ Modeling
- Phase-synchronous tonewheels, percussion, key click, wheel brake
- EX Mode
- Four additional, user-specified drawbars, and expanded percussion
- Internal Effects
- Rotary speaker, vibrato/chorus, amp modeling with overdrive, 3-band EQ
- Drawbar Control
- Controlled via nine front-panel sliders (via Tone Adjust)
- Split
- Upper, Lower (even in EX mode)
- Modulation
- Two AMS mixers
STR-1 Program
- Physically Modeled String
- Includes physically modeled damping, decay, dispersion, nonlinearity, harmonics, dual pickups, and more. Most string parameters can be controlled in realtime
- String Excitation
- Three independent excitation sources can be used simultaneously: Pluck, Noise, and PCM. 16 preset “pluck” types, with modulatable width and randomization. Noise generator with saturation and dedicated low pass filter
PCM Oscillator
KORG’s ultra-low-aliasing technology, as introduced in the HD-1; 4 velocity zones per oscillator; Uses any mono Multisamples, including ROM, EXs, User Sample Bank, or Sampling Mode. Supports Virtual Memory.
Excitation Filter
Dedicated 2-pole multimode filter for shaping the string excitation. Filter can be enabled/disabled separately for each excitation source. Low Pass, High Pass, Band Pass, and Band Reject modes
- Audio Input and Feedback
- Run real-time audio through the string, including feedback through effects. Modeled feedback includes modulate-able instrument-to-amp distance and orientation
- Filters
- Dual multi-mode filters per voice; Single, Serial, Parallel (with split stereo output), and 24dB (4-pole) configurations. Low Pass, High Pass, Band Pass, and Band Reject modes
Multi Filter Mode (Filter A only)
Modulatable mix of Low Pass, High Pass, Band Pass, and dry input, for creating a wide variety of unique filter types and effects
- Modulation
- 5 Envelopes, 4 per-voice LFOs, 2 Key Track generators, String Tracking generators, 4 AMS Mixers
MOD-7 Program
- Waveshaping VPM Synthesizer
- Combines Variable Phase Modulation (VPM), Waveshaping ring modulation, PCM sample playback, and subtractive synthesis; Able to convert-load SYX files
- Oscillators
- 6 VPM/Waveshaper/Ring Modulation Oscillators
Phase and modulatable pitch per oscillator. 101 Waveshaper tables plus modulatable Drive and Offset. Use as oscillators, or as Waveshapers or Ring Modulators for other signals
PCM Oscillator
KORG’s ultra-low-aliasing technology, as introduced in the HD-1. 4 velocity zones per oscillator.Uses any mono Multisamples, including ROM, EXs, User Sample Bank, or Sampling Mode. Supports Virtual Memory
Noise Generator (With saturation and low-pass filter function)
- Audio input
- Run real-time audio through the VPM Oscillators and filters.
- Filters
- Dual multi-mode filters per voice. (Low Pass, High Pass, Band Pass, and Band Reject modes) , Two types of filter looping (Parallel and 24 dB “4-Pole”)
Multi Filter mode (Filter A only)
Modulatable mix of Low Pass, High Pass, Band Pass, and dry input, for creating a wide variety of unique filter types and effects
- Patch Panel
- Supports both preset algorithm (78 types) selection and free patching.Three 2-in, 1-out mixers for scaling and merging audio, fully modulatable, with phase inversion. Main 6-input stereo mixer, with modulatable pan and volume, plus phase inversion
- Modulation
- 10 Envelopes, 4 per-voice LFOs, 9 Key Tracking generators, Per-voice Step Sequencer, 4 standard AMS Mixers plus 4 simple AMS Mixers
MS-20EX Program
- Oscillators
- Ultra-low-aliasing oscillators; VCO1, VCO2, Ring Mod, Pink and White Noise Generator
- Audio Input
- Run real-time audio through the synthesis engine and ESP (External Signal Processor)
- Filters
- 12dB/octave High Pass and Low Pass self-resonant filters
ESP section
24dB/octave Low Cut and High Cut filters, available per voice.
- Patch Panel
- Patchable audio and modulation, at audio rates
- Patch Points
- Keyboard
Keyboard CV Out, Keyboard Trigger Out, VCO1+VCO2 CV In, VCO2 CV In
VCO
VCO1+VCO2 External Frequency Control In, VCO1 Out, VCO2 Out
VCF
External Signal In, External HP Filter Cutoff Frequency Control In, External LP Filter Cutoff Frequency Control In, HPF Out, LPF In, LPF Out
VCO+VCF
Total External Modulation In
VCA
External Initial Gain Control In, VCA In
EG
EG1 Envelope Signal Normal Out, EG1 Envelope Signal Reverse Out, EG1+EG2 Trigger In, EG1 Trigger In, EG2 Envelope Signal Reverse Out
MG
Triangle Out, Rectangle Out
Noise Generator
Pink Noise Out, White Noise Out
Sample and Hold
Clock Trigger In, Sample Signal In, S/H Out
Modulation VCA
Control Voltage In, Signal In, Signal Out
Manual Controller
Control Wheel Out, Momentary Switch
ESP
Signal In, AMP Out, BPF In, BPF Out, F-V CV Out, Envelope Out, Trigger Out
Others
EXi Audio In, Mixer 1 In, Mixer 1 Out, Mixer 2 In, Mixer 2 Out
- ESP (External Signal Processor):
- Use incoming audio as a trigger and/or CV source
- Modulation
- Original DAR (Delay, Attack, Release) and HADSR (Hold, Attack, Decay, Sustain, Release) EGs 1 &2, Original MG (with MIDI sync), Sample-and- Hold, MVCA, NAUTILUS: 4 additional multi-stage Envelopes, 4 additional per-voice LFOs, and 4 AMS Mixers.
PolysixEX Program
- Oscillators
- VCO
Saw, Pulse, PWM
Sub Oscillator: Off, 1 octave below, 2 octaves below
- Filter: 24dB(4-Pole) Octave Low Pass self-resonant filter
- Effects: Integrated Polysix Chorus, Phaser, and Ensemble
- Arpeggiator: Integrated MIDI-synced arpeggiator, with adjustable Range, Mode, and Latch
- Modulation
- Polysix: Original ADSR EG and MG (with MIDI sync).
NAUTILUS
2 additional multi-stage Envelopes, 2 additional per-voice LFOs, and 4 AMS Mixers.
Combination
- Number of Timbres, Master Keyboard Functionality
- 16 Maximum
Keyboard and velocity splits, layers, and crossfades of up to 16 Programs and/or external MIDI Devices
The tone adjust parameter function lets you modify program settings, and the master keyboard function lets you control external MIDI devices
- Advanced Vector Synthesis
- Control oscillator volumes and synthesis & effects parameters via the Vector Joystick and the tempo-synchronized Vector Envelope
- Quick Layer / Split function
Drumkit
Assignable stereo/mono samples with 8 velocity zones per oscillator (with crossfade functions)
Number of Programs/Combinations/Drum kits
- User Memory Programs
- 2,560 (1,920 [1,280 HD-1+640 EXi] come preloaded)
- User Memory Combinations
- 1,792 (256 come preloaded)
- User Memory Drum Kits
- 264 (104 come preloaded)
- 256 GM Level2 preset programs + 9 GM Level 2 drum preset programs
Set List
- Number of Set Lists/Slots
- 128 set lists, 128 slots per set list
Each set list provides a 9-band graphic EQ, and a Tone Adjust function that allows program settings to be adjusted
Transpose setting
Hold Time setting of Smooth Sound Transition (SST) supported for each slot
Sampling
- System
- Open Sampling System (resampling, In-Track sampling)
- Bit Depth/Sampling Frequency
- RAM: 16-bit/48 kHz stereo/mono sampling
DISK: 16 or 24-bit/48 kHz
- Sampling Time
- RAM: Depends on the amount of available PCM RAM
DISK: Maximum 80 minutes stereo (879MB: 16bit)
- Sample Locations
- 16,000 samples/4,000 multisamples (128 indexes per multisample)
- Formats
- KORG format, AKAI S1000/S3000 data (with advanced Program parameter conversion); SoundFont 2.0, AIFF, and WAVE formats
- Editing
- Time Stretch, Time Slice, Crossfade Loop, and other standard editing features.
Effects
- Insert Effects: 12 Stereo in / stereo out
- Master Effects: 2 Stereo in / stereo out
- Total Effects: 2 Stereo in / stereo out
- Timbre EQ: One 3-band EQ for each timbre/track
- Effect Types: 197
- Modulation: Dynamic Modulation and Common LFO
- Effects Control Busses: Stereo side-chaining for compressors, gates, vocoders, etc
- Effect Presets: Total 783 preset, Maximum 32 per 1 effect (Preset User)
Arpeggiator
- Arpeggiator Modules: One module in Program mode, two modules in Combination and Sequencer modes
- Arpeggio Pattern: 5 presets + ARP A 2,048 slots (1,593 come Preload) + ARP B 128 slots
- Controllers: On/Off, Latch, Gate, Velocity, Length, Swing, Tempo
Drum Track
- Preset Patterns: 1,272 (common with the preset patterns of the MIDI sequencer)
- User Patterns: 1,000 Patterns created in Sequencer mode can be converted to drum track user patterns.
- Trigger Mode/ Sync / Zone / Swing, Drum SD, Tempo settings can be specified.
Sequencer / HDR
- Tracks: 16-track MIDI sequencer + 16-track hard disk recorder + 1 master track.
- Number of Songs: 200
- MIDI Tracks
- 16 tracks plus the master track, 697 preset / 100 user patterns (per song), 18 preset/16 user template songs,
- Audio Tracks
- 16-track playback, 4-track simultaneous recording, WAV file format 16bit/24bit
Maximum Single-file Recording Time (mono): 80 minutes
Automation: Volume, Pan, EQ, and Send1/2
10,000 regions (max.)
Event Anchors, BPM Adjust
- Other Functions: RPPR (Realtime Pattern Play and Record): 1 Pattern set per song
General
- Disk Mode
- Load, save, utility, data filer function (save/load MIDI System Exclusive data), CD-R/RW (UDF format read/write), ISO9660 Level 1.
- Controllers
- Joystick, Switches 1 & 2
Arpeggiator Control: On/Off, Latch, Gate, Velocity, Length, Swing, Tempo
DRUM TRACK: On/Off, Swing, Drum SD, Tempo
- Display
- TouchView graphical user interface, 7 inch color TFT, WVGA (800 x 480 dots), adjustable brightness
- Principal Specifications
- Frequency Response: 20Hz-22kHz, +/-1.0dB, 10k Ω load
THD+N: 20Hz-22kHz, 0.01%, 10k Ω load (typical)
S/N: 95dB (typical)
Dynamic Range: 95dB (typical)
Crosstalk: 95dB, at 1kHz (typical)
- Outputs
- L/MONO, R, Individual 1-4
1/4” TRS Balanced
Output Impedance: 350 Ω Stereo; 175 Ω Mono (L/MONO Only),
Nominal Level: +4.0 dBu,
Maximum Level: +16.0 dBu (when load impedance is 600 Ω or greater)
MAIN VOLUME slider controls only AUDIO OUTPUT (MAIN) L/MONO and R
Headphones
1/4” stereo phone jack
Output impedance: 33 Ω,
Maximum Level: 60+60 mW (when load impedance is 33 Ω),
MAIN VOLUME knob (link with AUDIO OUTPUT (MAIN))
USB-B
24-bit, Sample Rate: 48 kHz, 2 channels
(Digital output of the same signals as AUDIO OUTPUT (MAIN) L/MONO and R)
- Inputs
- Audio Inputs 1 and 2
1/4” TRS Balanced
Input Impedance: 10 kΩ
Nominal Level: LINE +4 dBu
Maximum Level: LINE +16 dBu
Nominal Level: MIC –22 dBu
Maximum Level: MIC -10 dBu
Source Impedance: 600 Ω
USB-B: 24-bit, Sample Rate: 48 kHz, 2 channels
- Control Inputs
- Damper pedal (half damper supported)
Assignable switch, Assignable pedal
- MIDI: In, Out, Thru
- USB: USB A (TYPE A)
USB B (TYPE B)
Disk Drives: 60 GB SSD (2.5”)
- Power Supply: AC power supply terminal, Power switch
- Dimensions: (W x D x H)
- 88 key: 1,437 x 387 x 139 mm / 56.57” x 15.24” x 5.47”
73 key: 1,227 x 386 x 116 mm / 48.31” x 15.20” x 4.57”
61 key: 1,062 x 386 x 116 mm / 41.81” x 15.20” x 4.57”
- Weight
- 88 key: 23.1 kg / 50.93 lbs.
73 key: 14.6 kg / 32.19 lbs.
61 key: 13.0 kg / 28.66 lbs.
- Accessories: AC cord, Quick Start Guide
Korg NAUTILUS 73 Keyboard Workstation
Kronos Workstation DNANautilus is a new synthesizer workstation from Korg and shares many sound creation features with their flagship Kronos instrument. Nautilus features the same raw sound quality and premium keyboard feel as Kronos, but with a new simplified control surface, and a re-designed 7-inch TFT TouchView WVGA graphical interface & operating system.
Nautilus loses the KARMA algorithmic musical effect generation technology found in Kronos but features a unique set of rotary encoders which can be click-pushed in 'flush' to the body of the instrument for safe travel purposes. Nautilus is definitely a synth keyboard made with the discerning performing musician in mind.
Free M1 SoundPack
Korg are excited to bring the sound of the legendary M1 to Nautilus. For free! The pack includes the full complement of 100 programs, 100 combis, and the original demo songs first seen and heard in M1.
M1 is more powerful than ever in Nautilus
In addition to being able to play the full content of M1 within Nautilus, it is also possible to take advantage of the huge evolution in technological and musical power it represents. This includes powerful effects, drum tracks, arpeggiators, smooth sound transition, huge polyphony (M1 had 16 notes!), 16-part combis (M1 had 8), 32-track audio and MIDI sequencing, immersive ease of use with real-time controls and colour touchscreen, and access to 9 other unique sound engines.
I've always loved the Kronos, but some would say it has more features than regular keyboard performers require. Enter Nautilus. Same sound quality and rugged build quality - everything a stage or studio performer needs. And cheaper too!
Part Exchange Your Keyboard
Do you already own a keyboard that you would like to trade-in for a new Korg Nautilus? Email us details of what you have to partex@bonners.co.uk and we will email you back a part exchange price immediately. Let us know the condition of your instrument and if you have the original manufacturer box and packaging. We can usually arrange the collection of your keyboard at the same time as delivery of a new Nautilus to your home.
Three Keyboard Length OptionsKorg Nautilius is available in three different keyboard lengths - 88 Weighted RH3 Hammer Action, and 61 & 73 note premium quality syn-weighted keyboards. The keys are velocity-sensitive.
Nine Synthesis TypesThe Nautilus range of keyboards features nine different types of synthesis to give you the best possible sound creation options whatever your chosen musical genre. SGX-2 Premium Acoustic Piano. EP-1 Electric Piano, HD-1 High Definition Sample Based Synth, AL-1 Analog Modelling, CX-3 Tonewheel Organ, STR-1 Plucked String Physical Modelling, MOD-7 Waveshaping VPM Synth, MS20EX Analog Modelling, and PolySixEX Analog Modelling.
MIDI Sequencer & Multitrack Audio RecordingSince the days of the M1 Music Workstation back in 1988, Korg has produced keyboards which are truly capable of producing a complete track from start to finish. Nautilus continues pushes the boundaries of onboard recording features even further with a 16 track MIDI sequencer plus 16-tracks of audio playback (4 track simultaneous record) recorder. The recorder allows complete mixer automation of volume, pan, EQ, FX sends, BPM and more. Auto Song Setup function makes it easy to get a recording as soon as inspiration hits!
Preset PCM Memory496MB ROM / Disk 2.3GB of multi-samples including 1771 Multisamples and 3955 Drum samples in ROM. Onboard expansion PCM Libraries include EXs301 German2 D Piano, EXs302 Italian F piano, EXs303 Japanese Upright Piano, EXs304 Prepared Piano, EXs305 Historical Keyboards, EXs306 Vintage Keyboards 2, EXs307 Synths & Strings, EXs308 Guitar Collection, EXs309 Bass Collection, EXs 310 World Essence, EXs211 Background Loops, EXs312 SFX & Hits, EXs313 Found Percussions and EXs314 Expansion Drums.
Set List FeatureThe Korg Set List feature makes it easy to arrange and select programs, combinations and songs quickie - for instance during live performance. A Set List can contain up to 128 different patches/songs arranged in the order you need for a gig or a studio recording session. A total of 128 Set Lists can be created and stored in the memory of Nautilus. Better still, Nautilus features the same patch remain feature found in Kronos which means the sound does not 'cut off' when changing between different programs and combinations.
User Sampling FeatureThere is approx. 2GB PCM sample RAM available, dependent upon how many Expansion PCM libraries are loaded. By default, the Nautilus loads approx 1.2GB of expansion sounds when shipped from the factory, but these can be erased for users to laid their own samples. Sampling is carried out at either 16-bit/48kHz directly into the user RAM, or up to 24-Bit/48kHz onto the built-in hard drive. Maximum sampling time to the disk is 879MB at 16-bit. Useful sample editing such as time stretch, time slice, crossfade loop and other options are available.
EffectsThere are 197 effect types which can be assigned to 12 insert effects, two master effects and two total effects.
Quick Layer/ Quick Split FunctionQuick Layer allows you to choose two programs and split or layer them across the keyboard. Search for sounds via category/bank/name and adjust the octave shift of either voice independently. This is a really simple way of creating simple sound combinations on the fly. You can even choose the upper and lower key window for the layered voice which means, for instance, that layered strings only sound in the higher registers of the keyboard.
Drum TrackA drum track can be assigned to any combination or program. Select from 1272 preset patterns, or record up to 1000 of your own which can be used to provide inspiration when practising or searching for new ideas. Patterns created in sequencer mode can be converted to drum track patterns.
Outputs & InputsNautilus has a total of six audio outputs on ¼" Balanced TRS jack sockets. L/MON, R & Individual 1-4. There are a ¼" headphone output and two audio inputs on ¼" balanced jacks. USB Type-A & B ports are provided, plus MIDI In, Out & Thru.
Disk DriveA built-in 60GB SSD provides storage for sounds, songs, samples and setups.
Korg NAUTILUS 73 Dimensions & Weight:- Width 1227 / Depth 386 / Height 116mm
- Weight 14.6 Kg
- Korg Nautilus Features
- Keyboard
- 88 key: RH3 (Real Weighted Hammer Action 3), A - C
73 key: Natural Touch Semi Weighted, C - C
61 key: Natural Touch Semi Weighted, C – C
Velocity sensitive is supported, after touch is not supported.
Tone Generator
- Synthesis Types: 9
SGX-2: Premium Piano (Acoustic Piano)
EP-1: MDS Electric Piano (Electric Piano)
HD-1: High Definition Synthesizer (PCM)
AL-1: Analog Synthesizer (Analog Modeling)
CX-3: Tonewheel Organ (Tonewheel Organ Modeling)
STR-1: Plucked String (Physical Modeling)
MOD-7: Waveshaping VPM Synthesizer (VPM Synthesis)
MS-20EX: Component Modeling Technology (Analog Modeling)
PolysixEX: Component Modeling Technology (CMT Analog Modeling)
- Maximum Polyphony
- SGX-2: 100 voices*3, EP-1: 104 voices, HD-1: 140 voices, AL-1: 80 voices, CX-3: 200 voices, STR-1: 40 voices, MOD-7: 52 , voices, MS-20EX: 40 voices, PolysixEX: 180 voices,
- Preset PCM: RAM 496 MB / DISK 2.3G (ROM 1,771 Multisamples, 3,955 Drumsamples)
- Build-in Expansion PCM Libraries
- EXs301: German2 D Piano, EXs302: Italian F Piano, EXs303: Japanese Upright U Piano, EXs304: Prepared Piano, EXs305: Historical Keyboards, EXs306: Vintage Keyboards 2, EXs307: Strings & Synths, EXs308: Guitar Collection, EXs309: Bass Collection, EXs310: World Essence, EXs311: Background Loops, EXs312: SFX & Hits, EXs313: Found Percussions, EXs314: Expansion Drums
- PCM RAM Capacity: Approx. 2GB *4
- Wave Sequences: 598 User memory, 377 Preload
SGX-2 Program
- Premium Piano
- Full key stereo sampling, Chromatically sampled at up to 12 velocity levels, no looping.
Damper resonance and mechanical noise are reproduced.
Una Corda sample support
- PCM
- EXs301 – German2 D Piano, 12 velocity levels, includes Ambience Piano type/samples, EXs302 – Italian F Piano, 12 velocity levels, no Una Corda samples, EXs303 – Japanese Upright U Piano, 8 velocity levels, Exs304 – Prepared Piano, 1-4 velocity levels
- Piano Type
- 128 (With the factory settings, the 64 varieties of EXs6: German D Piano, EXs7: Japanese C Piano, EXs12: SGX-1 Austrian D Piano, EXs17: Berlin D Piano do not produce sound. The options must be downloaded.
- Oscillator Control
- Damper Resonance, Damper Noise, Mechanical Noise, Note Release, String Resonance, Una Corda, EP-1 Program
- MDS Electric Piano
- Tine and reed-type electric pianos powered by Multi-Dimensional Synthesis (MDS), and vintage effects.
- Electric Piano Model Types 7
Tine EP I Early, Tine EP I Late, Tine EP II, Tine EP V, Tine EP DMP, Reed EP200, Reed EP200A
- Oscillator Control
- Harmonic Sound Level, Attack Noise, Level, Release Noise Level, Attack Brightness, Hammer Width
- Panel Control
- Tine Type: Preamp Volume, Tone (Treble, Bass), Vibrate (On/Off, Intensity, Speed), Amp/Cabinet (On/Off, Drive)
Reed Type: Preamp Volume, Tone (Treble, Bass), Vibrate (Intensity, Speed), Amp/Cabinet (On/Off, Drive)
- Effect Types 9
Small Phase, Orange Phase, Black Phase, Vintage Chorus, Black Chorus, EP Chorus, Vintage Flanger, Red Comp, VOX Wah
HD-1 Program
- Advanced Vector Synthesis
- Control oscillator volumes and synthesis & effects parameters via the Vector Joystick and the tempo-synchronized Vector Envelope.
- Structure
- Single: only OSC1, Double: OSC1 and OSC2.
Double mode lets you layer two completely separate synth voices, each with their own velocity-switched oscillator, dual filter, EGs, LFOs, etc.
Drums: One drum kit, Double Drums: Two drum kits.
- Oscillators
- 8 velocity zones per oscillator, with switching, crossfades and layering
Each zone can play mono or stereo Multisamples or Wave Sequences
- Filters: Two multi-mode filters per voices (low-pass, high-pass, band-pass and band-reject), Four-mode filter routings (single, serial, parallel and 24dB mode)
- Driver: Per voice non-linear driver and low boost circuit
- EQ: Three bands, with sweep-able mid
- Modulation
- Three envelope generators, two LFOs per voice, common LFO, four key tracking generators, AMS (Alternate Modulation Source), two AMS mixers
- Quick Layer / Split function
EXi Program Common
- Advanced Vector Synthesis
- Control oscillator volumes and synthesis & effects parameters via the Vector Joystick and the tempo-synchronized Vector Envelope
- Modulation
- Common Step Sequencer, AMS (Alternate Modulation Source), Common LFO, 2 Key Tracking Generators
- EQ: Three bands, with sweep-able mid, Quick Layer / Split function
AL-1 Program
- Oscillators
- Ultra-low-aliasing oscillators, OSC1, OSC2, Sub-oscillator and noise generator; ring modulation, FM and Sync
- Audio Input
- External audio can be processed through the ring modulator, filter, driver, amp, and EQ
- Filters
- Two multi-mode filters (low-pass, high-pass, band-pass and band-reject) with four types of filter routings (single, serial, parallel and 24dB mode), Multi Filter mode
- Driver
- Per-voice non-linear driver and low boost circuit
- Modulation
- Five Envelope generators, four per-voice LFOs, two AMS Mixers; Per-voice Step Sequencer
CX-3 Program
- Tonewheel Organ Modeling
- Phase-synchronous tonewheels, percussion, key click, wheel brake
- EX Mode
- Four additional, user-specified drawbars, and expanded percussion
- Internal Effects
- Rotary speaker, vibrato/chorus, amp modeling with overdrive, 3-band EQ
- Drawbar Control
- Controlled via nine front-panel sliders (via Tone Adjust)
- Split
- Upper, Lower (even in EX mode)
- Modulation
- Two AMS mixers
STR-1 Program
- Physically Modeled String
- Includes physically modeled damping, decay, dispersion, nonlinearity, harmonics, dual pickups, and more. Most string parameters can be controlled in realtime
- String Excitation
- Three independent excitation sources can be used simultaneously: Pluck, Noise, and PCM. 16 preset “pluck” types, with modulatable width and randomization. Noise generator with saturation and dedicated low pass filter
PCM Oscillator
KORG’s ultra-low-aliasing technology, as introduced in the HD-1; 4 velocity zones per oscillator; Uses any mono Multisamples, including ROM, EXs, User Sample Bank, or Sampling Mode. Supports Virtual Memory.
Excitation Filter
Dedicated 2-pole multimode filter for shaping the string excitation. Filter can be enabled/disabled separately for each excitation source. Low Pass, High Pass, Band Pass, and Band Reject modes
- Audio Input and Feedback
- Run real-time audio through the string, including feedback through effects. Modeled feedback includes modulate-able instrument-to-amp distance and orientation
- Filters
- Dual multi-mode filters per voice; Single, Serial, Parallel (with split stereo output), and 24dB (4-pole) configurations. Low Pass, High Pass, Band Pass, and Band Reject modes
Multi Filter Mode (Filter A only)
Modulatable mix of Low Pass, High Pass, Band Pass, and dry input, for creating a wide variety of unique filter types and effects
- Modulation
- 5 Envelopes, 4 per-voice LFOs, 2 Key Track generators, String Tracking generators, 4 AMS Mixers
MOD-7 Program
- Waveshaping VPM Synthesizer
- Combines Variable Phase Modulation (VPM), Waveshaping ring modulation, PCM sample playback, and subtractive synthesis; Able to convert-load SYX files
- Oscillators
- 6 VPM/Waveshaper/Ring Modulation Oscillators
Phase and modulatable pitch per oscillator. 101 Waveshaper tables plus modulatable Drive and Offset. Use as oscillators, or as Waveshapers or Ring Modulators for other signals
PCM Oscillator
KORG’s ultra-low-aliasing technology, as introduced in the HD-1. 4 velocity zones per oscillator.Uses any mono Multisamples, including ROM, EXs, User Sample Bank, or Sampling Mode. Supports Virtual Memory
Noise Generator (With saturation and low-pass filter function)
- Audio input
- Run real-time audio through the VPM Oscillators and filters.
- Filters
- Dual multi-mode filters per voice. (Low Pass, High Pass, Band Pass, and Band Reject modes) , Two types of filter looping (Parallel and 24 dB “4-Pole”)
Multi Filter mode (Filter A only)
Modulatable mix of Low Pass, High Pass, Band Pass, and dry input, for creating a wide variety of unique filter types and effects
- Patch Panel
- Supports both preset algorithm (78 types) selection and free patching.Three 2-in, 1-out mixers for scaling and merging audio, fully modulatable, with phase inversion. Main 6-input stereo mixer, with modulatable pan and volume, plus phase inversion
- Modulation
- 10 Envelopes, 4 per-voice LFOs, 9 Key Tracking generators, Per-voice Step Sequencer, 4 standard AMS Mixers plus 4 simple AMS Mixers
MS-20EX Program
- Oscillators
- Ultra-low-aliasing oscillators; VCO1, VCO2, Ring Mod, Pink and White Noise Generator
- Audio Input
- Run real-time audio through the synthesis engine and ESP (External Signal Processor)
- Filters
- 12dB/octave High Pass and Low Pass self-resonant filters
ESP section
24dB/octave Low Cut and High Cut filters, available per voice.
- Patch Panel
- Patchable audio and modulation, at audio rates
- Patch Points
- Keyboard
Keyboard CV Out, Keyboard Trigger Out, VCO1+VCO2 CV In, VCO2 CV In
VCO
VCO1+VCO2 External Frequency Control In, VCO1 Out, VCO2 Out
VCF
External Signal In, External HP Filter Cutoff Frequency Control In, External LP Filter Cutoff Frequency Control In, HPF Out, LPF In, LPF Out
VCO+VCF
Total External Modulation In
VCA
External Initial Gain Control In, VCA In
EG
EG1 Envelope Signal Normal Out, EG1 Envelope Signal Reverse Out, EG1+EG2 Trigger In, EG1 Trigger In, EG2 Envelope Signal Reverse Out
MG
Triangle Out, Rectangle Out
Noise Generator
Pink Noise Out, White Noise Out
Sample and Hold
Clock Trigger In, Sample Signal In, S/H Out
Modulation VCA
Control Voltage In, Signal In, Signal Out
Manual Controller
Control Wheel Out, Momentary Switch
ESP
Signal In, AMP Out, BPF In, BPF Out, F-V CV Out, Envelope Out, Trigger Out
Others
EXi Audio In, Mixer 1 In, Mixer 1 Out, Mixer 2 In, Mixer 2 Out
- ESP (External Signal Processor):
- Use incoming audio as a trigger and/or CV source
- Modulation
- Original DAR (Delay, Attack, Release) and HADSR (Hold, Attack, Decay, Sustain, Release) EGs 1 &2, Original MG (with MIDI sync), Sample-and- Hold, MVCA, NAUTILUS: 4 additional multi-stage Envelopes, 4 additional per-voice LFOs, and 4 AMS Mixers.
PolysixEX Program
- Oscillators
- VCO
Saw, Pulse, PWM
Sub Oscillator: Off, 1 octave below, 2 octaves below
- Filter: 24dB(4-Pole) Octave Low Pass self-resonant filter
- Effects: Integrated Polysix Chorus, Phaser, and Ensemble
- Arpeggiator: Integrated MIDI-synced arpeggiator, with adjustable Range, Mode, and Latch
- Modulation
- Polysix: Original ADSR EG and MG (with MIDI sync).
NAUTILUS
2 additional multi-stage Envelopes, 2 additional per-voice LFOs, and 4 AMS Mixers.
Combination
- Number of Timbres, Master Keyboard Functionality
- 16 Maximum
Keyboard and velocity splits, layers, and crossfades of up to 16 Programs and/or external MIDI Devices
The tone adjust parameter function lets you modify program settings, and the master keyboard function lets you control external MIDI devices
- Advanced Vector Synthesis
- Control oscillator volumes and synthesis & effects parameters via the Vector Joystick and the tempo-synchronized Vector Envelope
- Quick Layer / Split function
Drumkit
Assignable stereo/mono samples with 8 velocity zones per oscillator (with crossfade functions)
Number of Programs/Combinations/Drum kits
- User Memory Programs
- 2,560 (1,920 [1,280 HD-1+640 EXi] come preloaded)
- User Memory Combinations
- 1,792 (256 come preloaded)
- User Memory Drum Kits
- 264 (104 come preloaded)
- 256 GM Level2 preset programs + 9 GM Level 2 drum preset programs
Set List
- Number of Set Lists/Slots
- 128 set lists, 128 slots per set list
Each set list provides a 9-band graphic EQ, and a Tone Adjust function that allows program settings to be adjusted
Transpose setting
Hold Time setting of Smooth Sound Transition (SST) supported for each slot
Sampling
- System
- Open Sampling System (resampling, In-Track sampling)
- Bit Depth/Sampling Frequency
- RAM: 16-bit/48 kHz stereo/mono sampling
DISK: 16 or 24-bit/48 kHz
- Sampling Time
- RAM: Depends on the amount of available PCM RAM
DISK: Maximum 80 minutes stereo (879MB: 16bit)
- Sample Locations
- 16,000 samples/4,000 multisamples (128 indexes per multisample)
- Formats
- KORG format, AKAI S1000/S3000 data (with advanced Program parameter conversion); SoundFont 2.0, AIFF, and WAVE formats
- Editing
- Time Stretch, Time Slice, Crossfade Loop, and other standard editing features.
Effects
- Insert Effects: 12 Stereo in / stereo out
- Master Effects: 2 Stereo in / stereo out
- Total Effects: 2 Stereo in / stereo out
- Timbre EQ: One 3-band EQ for each timbre/track
- Effect Types: 197
- Modulation: Dynamic Modulation and Common LFO
- Effects Control Busses: Stereo side-chaining for compressors, gates, vocoders, etc
- Effect Presets: Total 783 preset, Maximum 32 per 1 effect (Preset User)
Arpeggiator
- Arpeggiator Modules: One module in Program mode, two modules in Combination and Sequencer modes
- Arpeggio Pattern: 5 presets + ARP A 2,048 slots (1,593 come Preload) + ARP B 128 slots
- Controllers: On/Off, Latch, Gate, Velocity, Length, Swing, Tempo
Drum Track
- Preset Patterns: 1,272 (common with the preset patterns of the MIDI sequencer)
- User Patterns: 1,000 Patterns created in Sequencer mode can be converted to drum track user patterns.
- Trigger Mode/ Sync / Zone / Swing, Drum SD, Tempo settings can be specified.
Sequencer / HDR
- Tracks: 16-track MIDI sequencer + 16-track hard disk recorder + 1 master track.
- Number of Songs: 200
- MIDI Tracks
- 16 tracks plus the master track, 697 preset / 100 user patterns (per song), 18 preset/16 user template songs,
- Audio Tracks
- 16-track playback, 4-track simultaneous recording, WAV file format 16bit/24bit
Maximum Single-file Recording Time (mono): 80 minutes
Automation: Volume, Pan, EQ, and Send1/2
10,000 regions (max.)
Event Anchors, BPM Adjust
- Other Functions: RPPR (Realtime Pattern Play and Record): 1 Pattern set per song
General
- Disk Mode
- Load, save, utility, data filer function (save/load MIDI System Exclusive data), CD-R/RW (UDF format read/write), ISO9660 Level 1.
- Controllers
- Joystick, Switches 1 & 2
Arpeggiator Control: On/Off, Latch, Gate, Velocity, Length, Swing, Tempo
DRUM TRACK: On/Off, Swing, Drum SD, Tempo
- Display
- TouchView graphical user interface, 7 inch color TFT, WVGA (800 x 480 dots), adjustable brightness
- Principal Specifications
- Frequency Response: 20Hz-22kHz, +/-1.0dB, 10k Ω load
THD+N: 20Hz-22kHz, 0.01%, 10k Ω load (typical)
S/N: 95dB (typical)
Dynamic Range: 95dB (typical)
Crosstalk: 95dB, at 1kHz (typical)
- Outputs
- L/MONO, R, Individual 1-4
1/4” TRS Balanced
Output Impedance: 350 Ω Stereo; 175 Ω Mono (L/MONO Only),
Nominal Level: +4.0 dBu,
Maximum Level: +16.0 dBu (when load impedance is 600 Ω or greater)
MAIN VOLUME slider controls only AUDIO OUTPUT (MAIN) L/MONO and R
Headphones
1/4” stereo phone jack
Output impedance: 33 Ω,
Maximum Level: 60+60 mW (when load impedance is 33 Ω),
MAIN VOLUME knob (link with AUDIO OUTPUT (MAIN))
USB-B
24-bit, Sample Rate: 48 kHz, 2 channels
(Digital output of the same signals as AUDIO OUTPUT (MAIN) L/MONO and R)
- Inputs
- Audio Inputs 1 and 2
1/4” TRS Balanced
Input Impedance: 10 kΩ
Nominal Level: LINE +4 dBu
Maximum Level: LINE +16 dBu
Nominal Level: MIC –22 dBu
Maximum Level: MIC -10 dBu
Source Impedance: 600 Ω
USB-B: 24-bit, Sample Rate: 48 kHz, 2 channels
- Control Inputs
- Damper pedal (half damper supported)
Assignable switch, Assignable pedal
- MIDI: In, Out, Thru
- USB: USB A (TYPE A)
USB B (TYPE B)
Disk Drives: 60 GB SSD (2.5”)
- Power Supply: AC power supply terminal, Power switch
- Dimensions: (W x D x H)
- 88 key: 1,437 x 387 x 139 mm / 56.57” x 15.24” x 5.47”
73 key: 1,227 x 386 x 116 mm / 48.31” x 15.20” x 4.57”
61 key: 1,062 x 386 x 116 mm / 41.81” x 15.20” x 4.57”
- Weight
- 88 key: 23.1 kg / 50.93 lbs.
73 key: 14.6 kg / 32.19 lbs.
61 key: 13.0 kg / 28.66 lbs.
- Accessories: AC cord, Quick Start Guide
Delivery ETA's
For accurate delivery information, please contact our sales team on sales@bonnersmusic.co.uk or call 01323 639335. As a guide, despatch times are detailed below.
Additional charges will be made for delivery of heavy items to some areas. Charges may also apply to upgrades including (but not limited to) timed deliveries, piano assembly, delivery of large items, and when matching deals from other retailers. If you are unsure about our delivery charges, please contact us.
In Stock Products
Products that are shown as in stock will be sent using our standard delivery service within 2 working days from when payment is received. This excludes piano deliveries with full installation - see below.
Pre-Order Products
Products which are shown as pre-order are not in stock, but can be ordered and reserved for you from the next available shipment. Order today to reserve your place in the queue! Call or email us for the latest lead times on pre-order products.
Digital Piano Deliveries:
We have many flexible delivery options for most delivery pianos, based on your location and whether you require it flat-packed, or fully assembled in your home. Digital piano delivery options are shown at checkout.
Piano Deliveries
If you purchase a piano which is supplied with full installation, we will contact you once your order is received to arrange a convenient delivery date & time. Delivery & installation is usually within 14 days, but often sooner. Call us for current lead times on pianos.
Digital Piano Deliveries For Self-Assembly
Click here to see our specific information relating to piano deliveries.
If you choose our courier delivery/flat pack delivery method, please be aware that with larger items such as digital pianos, the courier is not contracted to carry them up any steps or stairs. If there are stairs leading to the front door of the delivery address, or you live in an apartment which is not on pavement level, it is your responsibility to arrange transportation from the pavement level to the delivery address. In this instance, the delivery driver may, at their own discretion assist you in carrying the parcels to the delivery address, but they are not contracted nor obliged to do so.
Do you need delivery upstairs, or delivery at a specific time?
For some larger items which need to be delivered upstairs - including pianos, we offer a timed delivery service using our own van and drivers. This service is free on some items and chargeable on others. Call us on 01323 639335 to discuss your specific delivery requirements.
No-one at home?
Our courier will try and deliver your parcel(s) twice. After the second failed attempt, your goods will be returned to our warehouse. If you would like us to try and deliver them again, we will charge the delivery charges associated with your order again.
Delivery Surcharges For Larger Items
For some larger items, delivery surcharges may apply to the following areas: Scotland, Wales, Channel Islands, Isle Of Wight, Cornwall, Ireland, North Of England above Leeds. Call us on 01323 639335 to check before ordering.
If you're set on buying your new instrument, there's no need to get weighed down by the total cost of it straight away. If you break it down into monthly payments over time, it's much more manageable than you might think. And our fixed interest rates mean you'll know exactly what you're paying from the start.
How it works
The finance options available are displayed on our individual product pages - just click the button under the price to see the available options for each product. Finance is available for most new and used instruments over £400.
Pay a fixed deposit, and the rest is split into monthly payments. At the end of your contract when you've made your final payment, the instrument or equipment is all yours. You could own that dream guitar, piano or keyboard sooner than you thought!
Which Finance Options Are Available?
Most products on our website show the available finance options. Some are interest free, and some are interest bearing. The options shown on the site are an example of what is available - if you would like to pay over a different period, give us a call on 01323 639335 and we’ll try and arrange a finance option that suits your budget.
How To Apply For Finance
To apply for finance, please add the product to your cart, proceed through checkout and select 'Apply For Finance' as your payment option where you can complete the application form online.
The Lender
Bonners Ltd acts as a credit broker and only offers credit products from Secure Trust Bank PLC trading as V12 Retail Finance. Bonners Ltd is authorised and regulated by the Financial Conduct Authority. Our registration number is 718966. Bonners Ltd is registered in England and Wales 1994113. Registered office 34 North St, Hailsham, East Sussex BN27 1DW.
Secure Trust Bank is registered in England and Wales 541132. Registered office: One Arleston Way, Solihull, B90 4LH. Authorised by the Prudential Regulation Authority and regulated by the Financial Conduct Authority and the Prudential Regulation Authority. Registration number: 204550.
Not all products offered by Secure Trust Bank T/A V12 Retail Finance are regulated by the FCA
Korg NAUTILUS 73 Keyboard Workstation with FREE M1 Sound Pack Download
*Piano Cabinet Finishes Of Showroom Models May Vary
