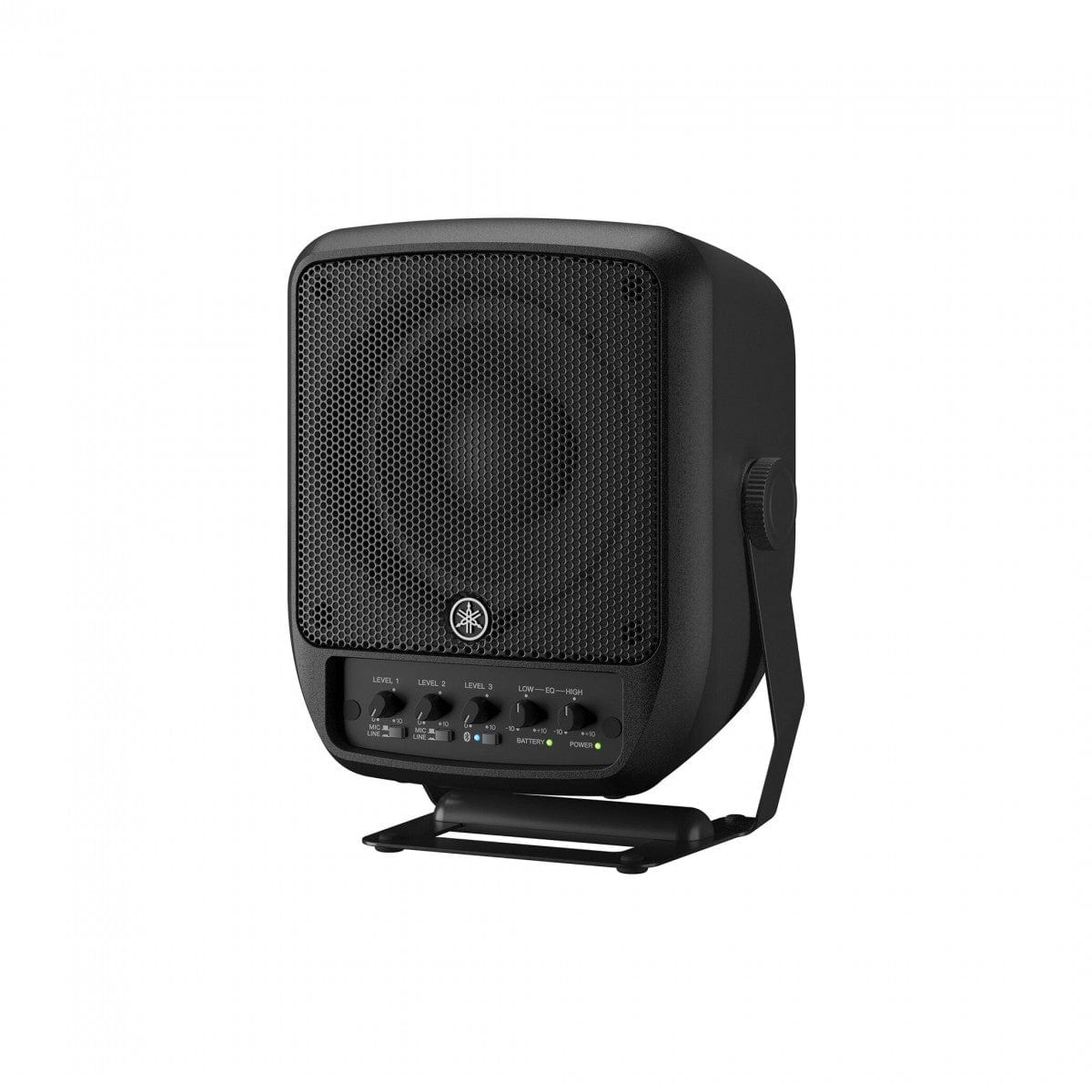

Yamaha Stagepas 100 Portable PA System
| Type 2-way Bi-amp Powered Speaker with mixer |
| Inputs INPUT 1: Combo (mic/line), INPUT 2: Combo (mic/line), INPUT 3: Stereo Mini x1 (line) |

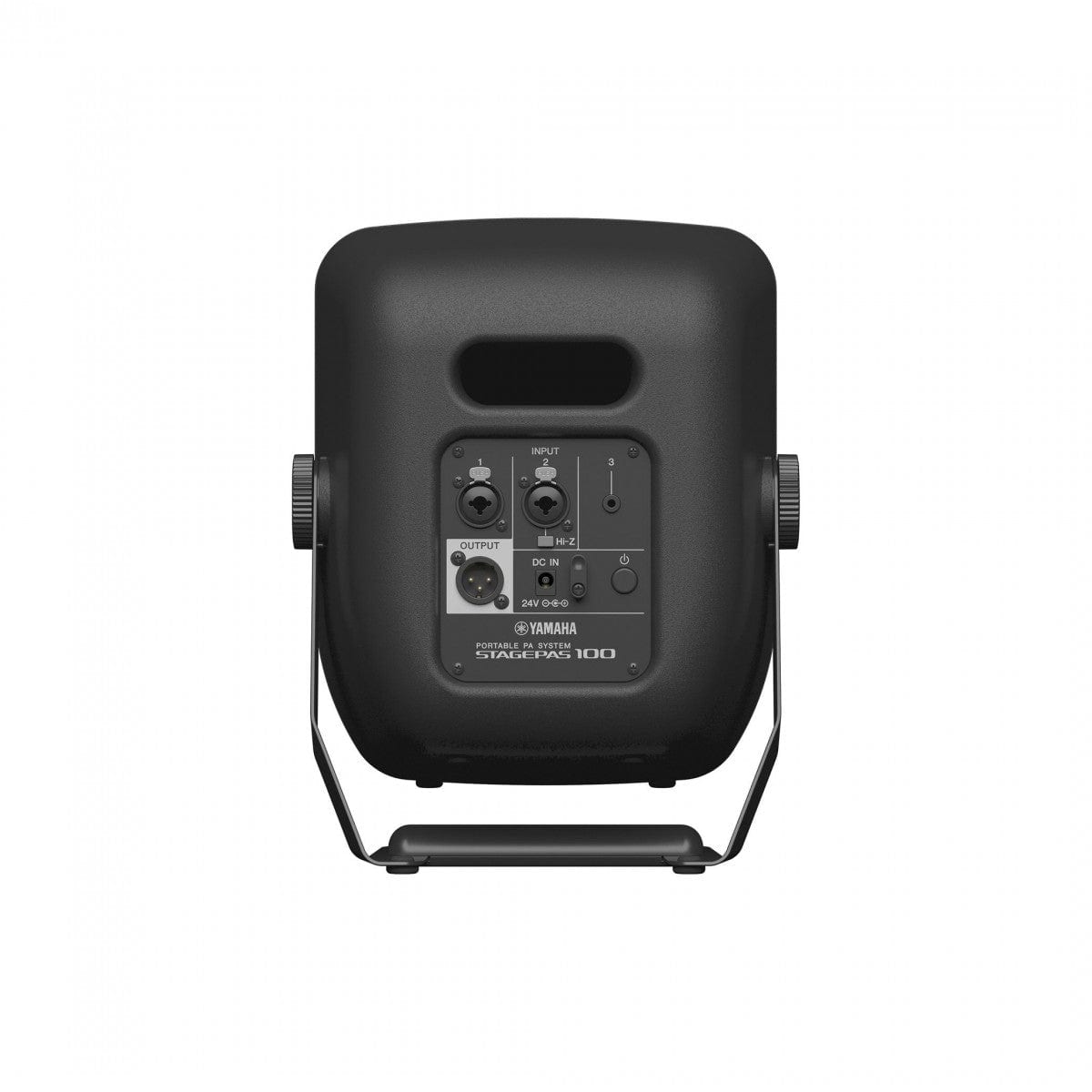

| Outputs OUTPUT: XLR3-32 (INPUT 1-3 mix) |
| Bluetooth Ver.5.0, A2DP (SBC, AAC), Class 1 |
| Mixing channels 3 |
| Input channel functions Hi-Z: CH2 |
| Output channel functions 2 Band EQ |
| Speaker type Coaxcial speaker with compression driver |
| Frequency range (-10dB) 70 Hz – 20 kHz |
| Coverage area H90ﾟ x V90ﾟ |
| Crossover 1.8 kHz (FIR-X) |
| Maximum output level (1m; on axis) 120 dB SPL *1 |
| LF 6.5" Cone, 1.7" voice coil |
| HF 1" throat compression driver, 1.4" voice coil |
| Amplifier class Class-D |
| Power rating 100 W (LF: 93 W, HF: 7 W) |
| Cooling Natural convection (no fan) |
| Power consumption 10 W (Idle), 30 W (1/8 power) |
| Power requirements 100-240 V 50/60 Hz |
| Battery: Capacity (BTR ONLY) Rechargeable Lithium ion battery pack Operating Time (BTR ONLY) 60 Wh Charging Time (BTR ONLY) Max 6 hours, 1/16 power continuous 5 hours Approx. 2.5 hours |
| Cabinet material Plastic (PP) |
| Handle Bottom x1 (Rotatable) |

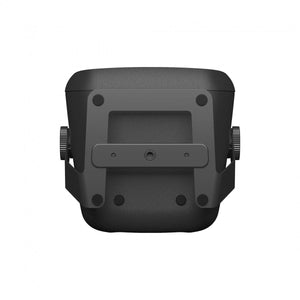

| Flying and mounting hardware 1 × 3/8", depth 12 mm (center of handle) |
| Dimensions (W x H x D) 239 x 310 x 215 mm (9.5" x 12.3" x 8.5"), with handle |
| Weight 5.5 kg (12.1 lbs), without AC adaptor |
| Accessories Power cord x 1, AC adaptor (PA-500) x 1 |
| Optional Accessories Carrying bag: BAG-STP100 |
Yamaha Stagepas 100 Portable PA System
EXPAND YOUR RANGE, EXTEND YOUR REACH
The STAGEPAS 100 portable PA system strikes a perfect balance between high-quality sound and ultimate portability that will allow you to turn virtually any location into your own intimate live stage. Coming in two versions, one with a battery and one without, the lightweight yet durable design, effort-less operation, and astonishing sound of the STAGEPAS 100 will help you reach your audience with the full expression of your performance.
Portable PA system equipped with a 100 W power amp, coaxial compression driver with 1.4” voice coil HF and 6.5” cone LF, and a 3-channel mixer.
- 100 W Class-D amplifier
- 1.4” HF + 6.5” LF high-quality coaxial compression driver using an FIR filter for the crossover
- 3-channel mixer (2 monaural mic/line + 1 line)
- Equipped with a 2-band master EQ
- Compatible with Hi-Z input (Channel 2 only)
- Equipped with mix-out

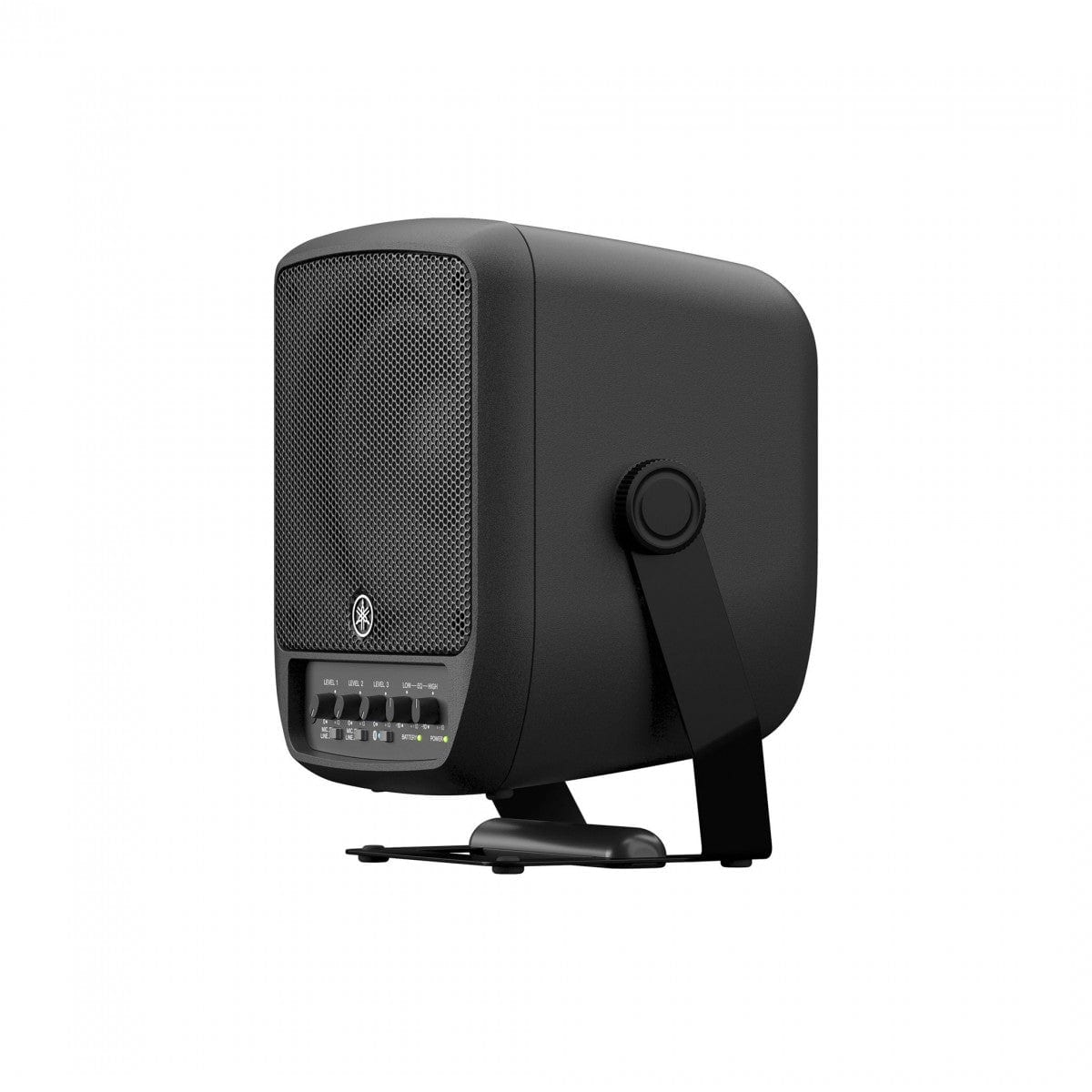

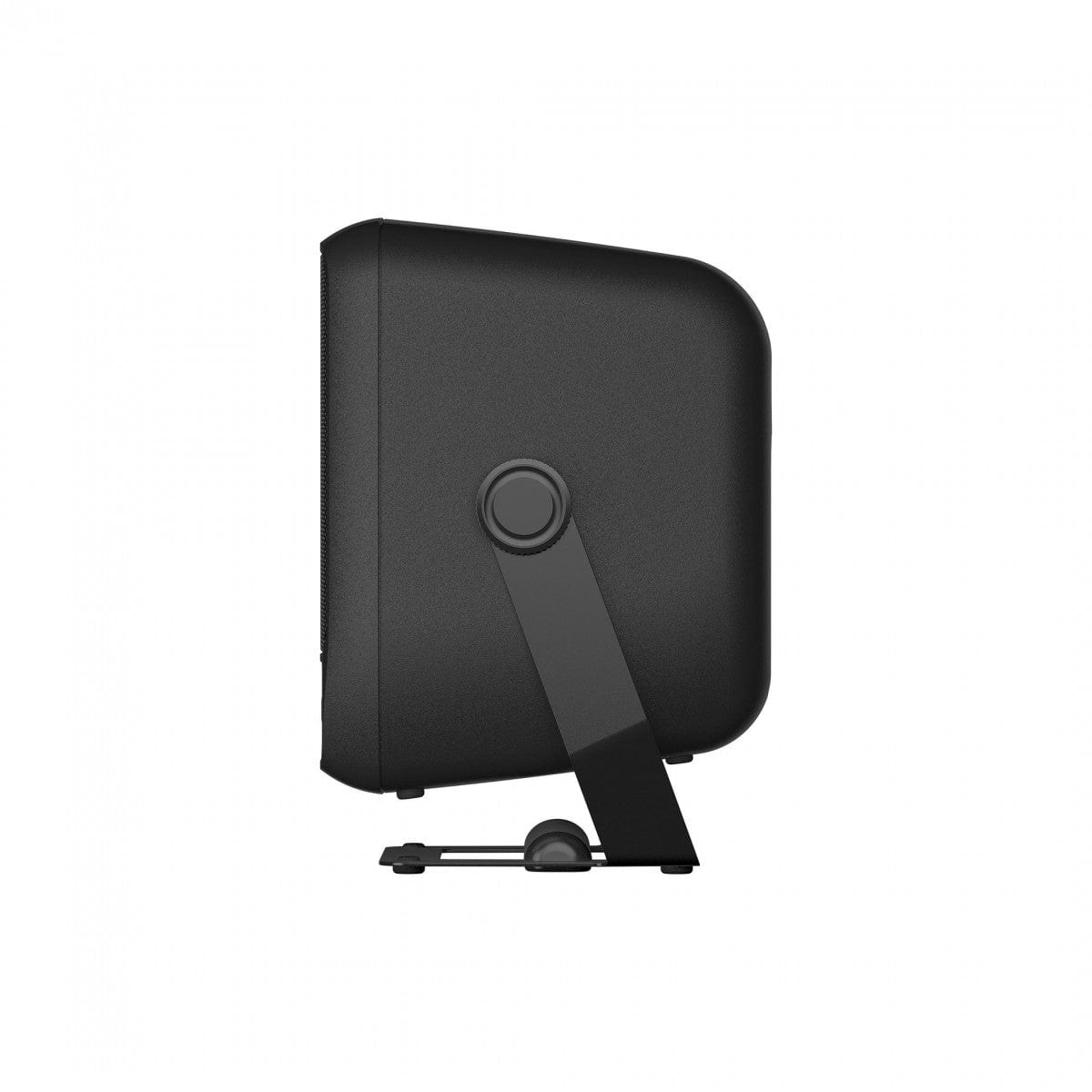

- Carrying handle doubles as an adjustable stand
- Compatible with audio accompaniment over Bluetooth
- Optional carrying bag (BAG-STP100) available for convenient transport
Start the show in seconds

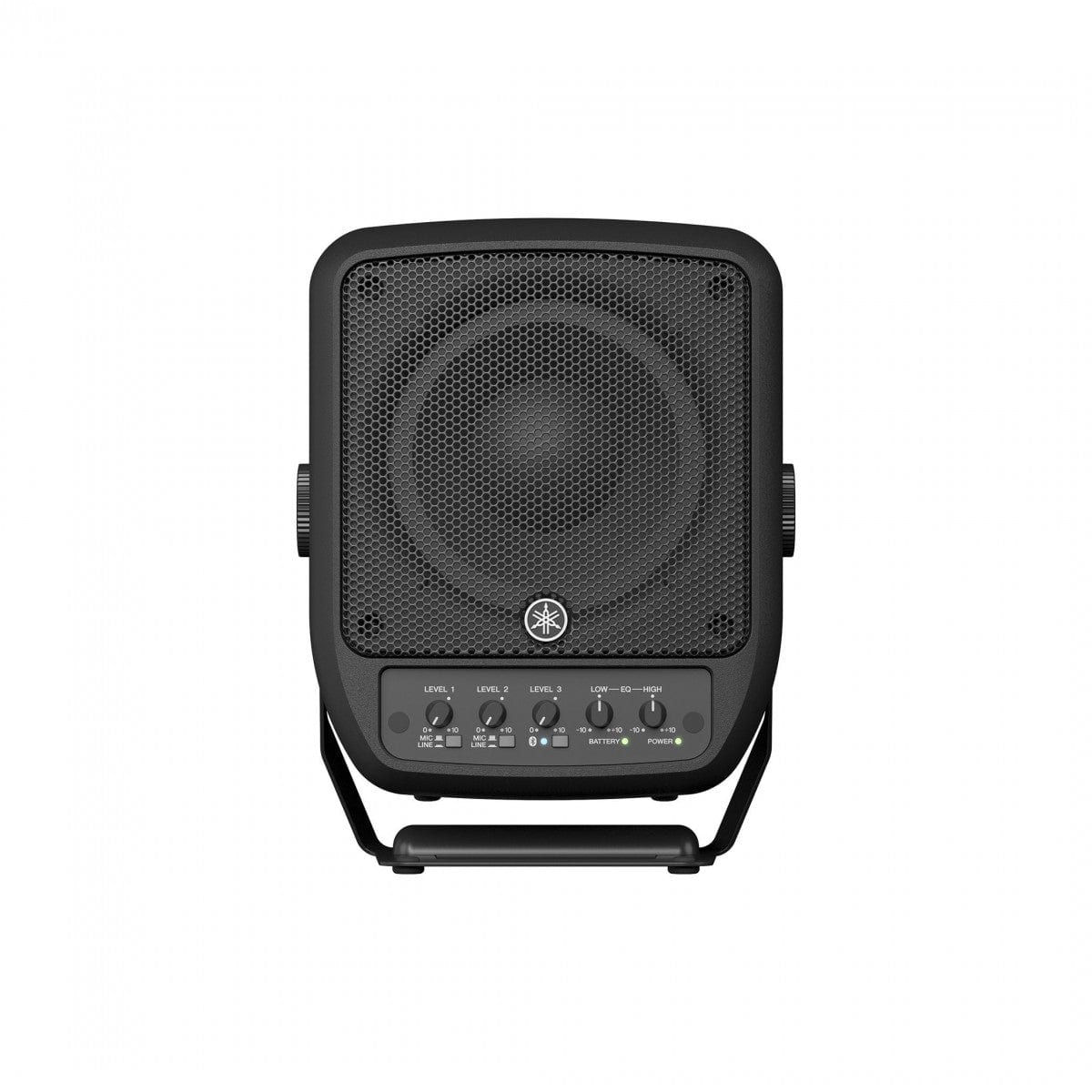

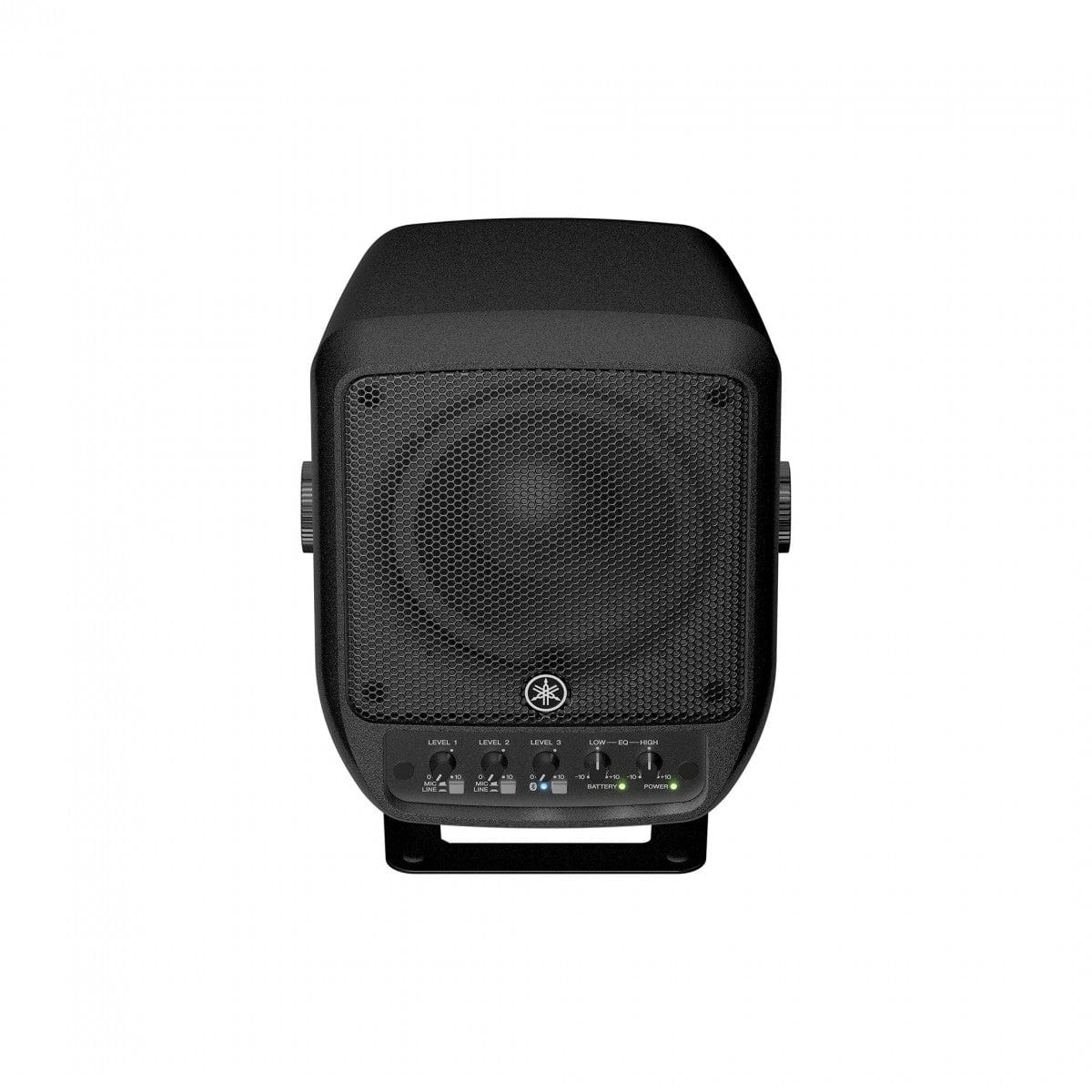

With an unrivaled ease of operation and a setup requiring mere seconds, the STAGEPAS 100 will have you sounding great and performing in an instant. Just turn the power on, connect a micro-phone and your instrument, turn the volume up, and you're ready to go. The master EQ is right on the front panel making it easy to dial in your sound or adjust settings on the fly.
Compact design. Big sound.
Far more than just a speaker that amplifies your mic or instrument inputs, the diminutive STAGEPAS 100 delivers impressive sonic performance by leveraging some of the same technologies used in our high-end professional products. A powerful, high-quality coaxial compression driver combined with Yamaha’s FIR-X filters for the HF and LF crossover deliver sound pressure, precise phase response, and a natural dispersion that will ensure every nuance of your performance is conveyed loud and clear to your audience.
“A PA in the palm of your hand”
With all the essentials for a compact PA packed into a durable cabinet weighing just 5 kg, the STAGEPAS 100 takes portability to a whole new level. Having a personal live stage you can easily carry in one hand makes it possible to set up and play literally anywhere, anytime.
6 Hours of non-stop performance with the BTR Version
Multipoint Bluetooth® connectivity
The right direction

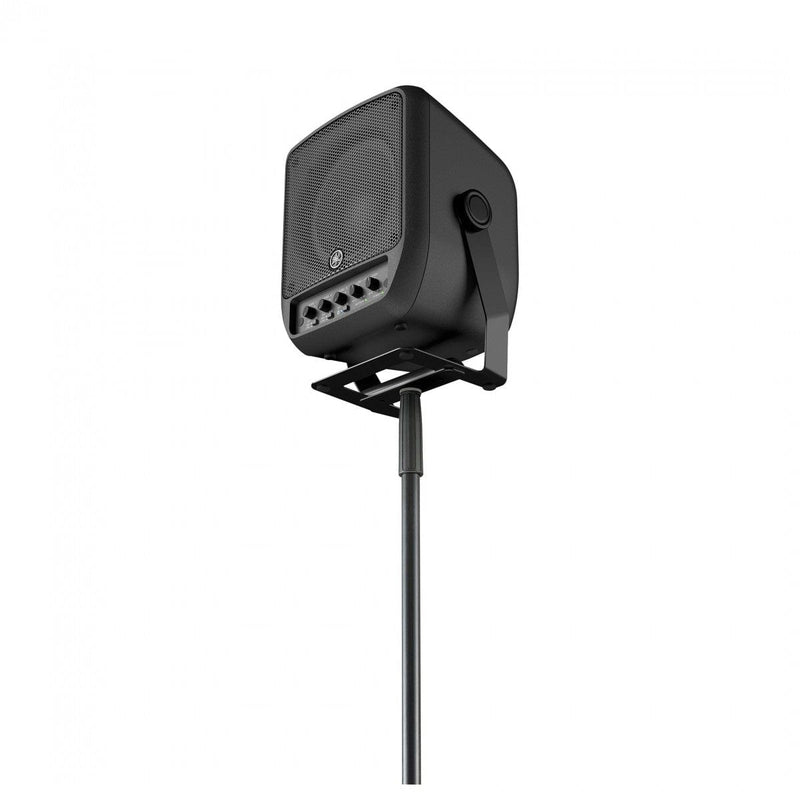

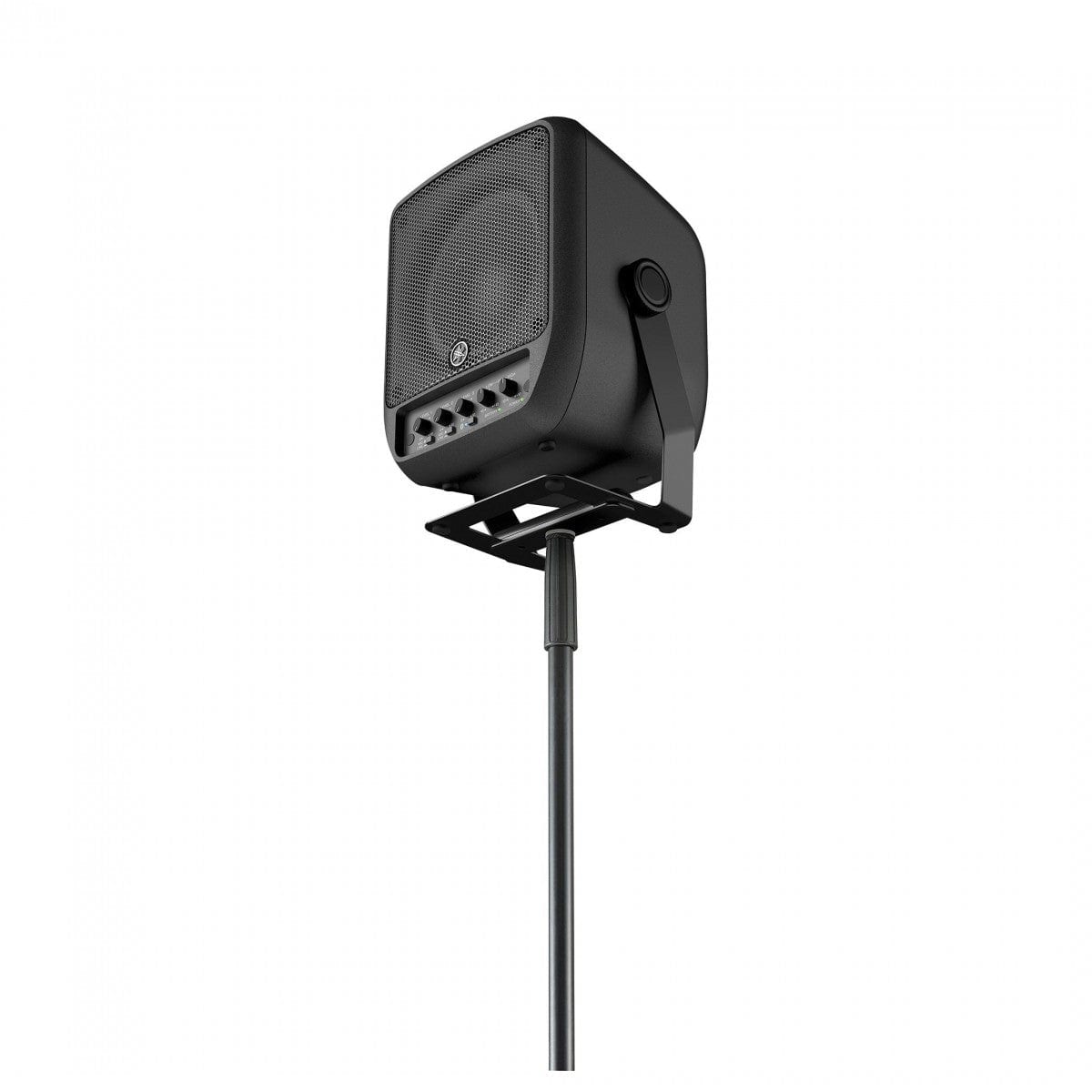

Mounting possibilities
Whenever. Wherever.
The dedicated BAG-STP100 carrying bag features internal pockets for storing adapters, cables etc., as well as a padded shoulder strap for safe and easy transport to any location.
| Type 2-way Bi-amp Powered Speaker with mixer |
| Inputs INPUT 1: Combo (mic/line), INPUT 2: Combo (mic/line), INPUT 3: Stereo Mini x1 (line) |
| Outputs OUTPUT: XLR3-32 (INPUT 1-3 mix) |
| Bluetooth Ver.5.0, A2DP (SBC, AAC), Class 1 |
| Mixing channels 3 |
| Input channel functions Hi-Z: CH2 |
| Output channel functions 2 Band EQ |
| Speaker type Coaxcial speaker with compression driver |
| Frequency range (-10dB) 70 Hz – 20 kHz |
| Coverage area H90ﾟ x V90ﾟ |
| Crossover 1.8 kHz (FIR-X) |
| Maximum output level (1m; on axis) 120 dB SPL *1 |
| LF 6.5" Cone, 1.7" voice coil |
| HF 1" throat compression driver, 1.4" voice coil |
| Amplifier class Class-D |
| Power rating 100 W (LF: 93 W, HF: 7 W) |
| Cooling Natural convection (no fan) |
| Power consumption 10 W (Idle), 30 W (1/8 power) |
| Power requirements 100-240 V 50/60 Hz |
| Battery: Capacity (BTR ONLY) Rechargeable Lithium ion battery pack Operating Time (BTR ONLY) 60 Wh Charging Time (BTR ONLY) Max 6 hours, 1/16 power continuous 5 hours Approx. 2.5 hours |
| Cabinet material Plastic (PP) |
| Handle Bottom x1 (Rotatable) |

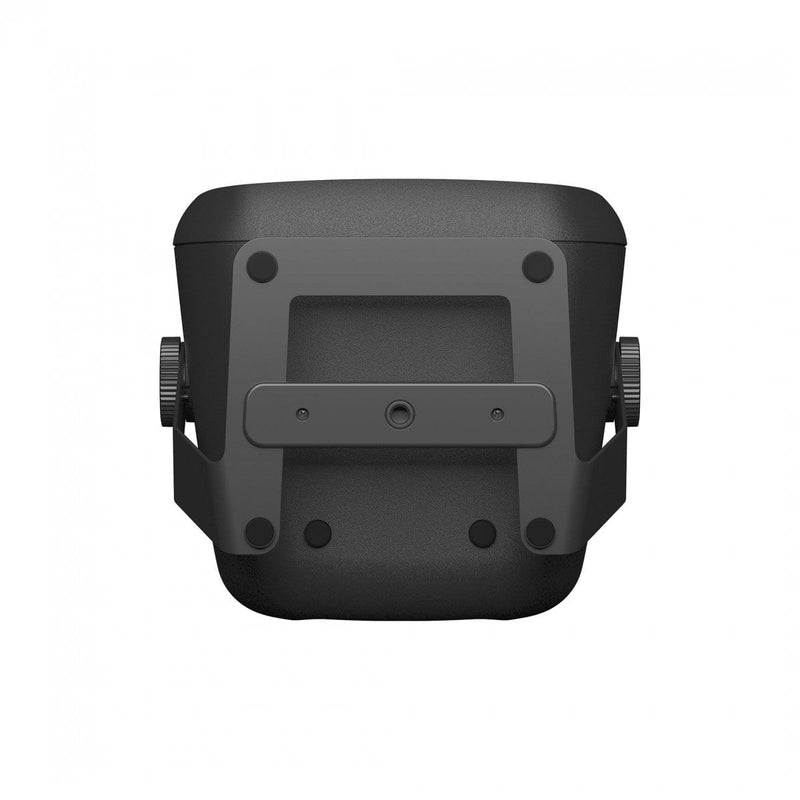

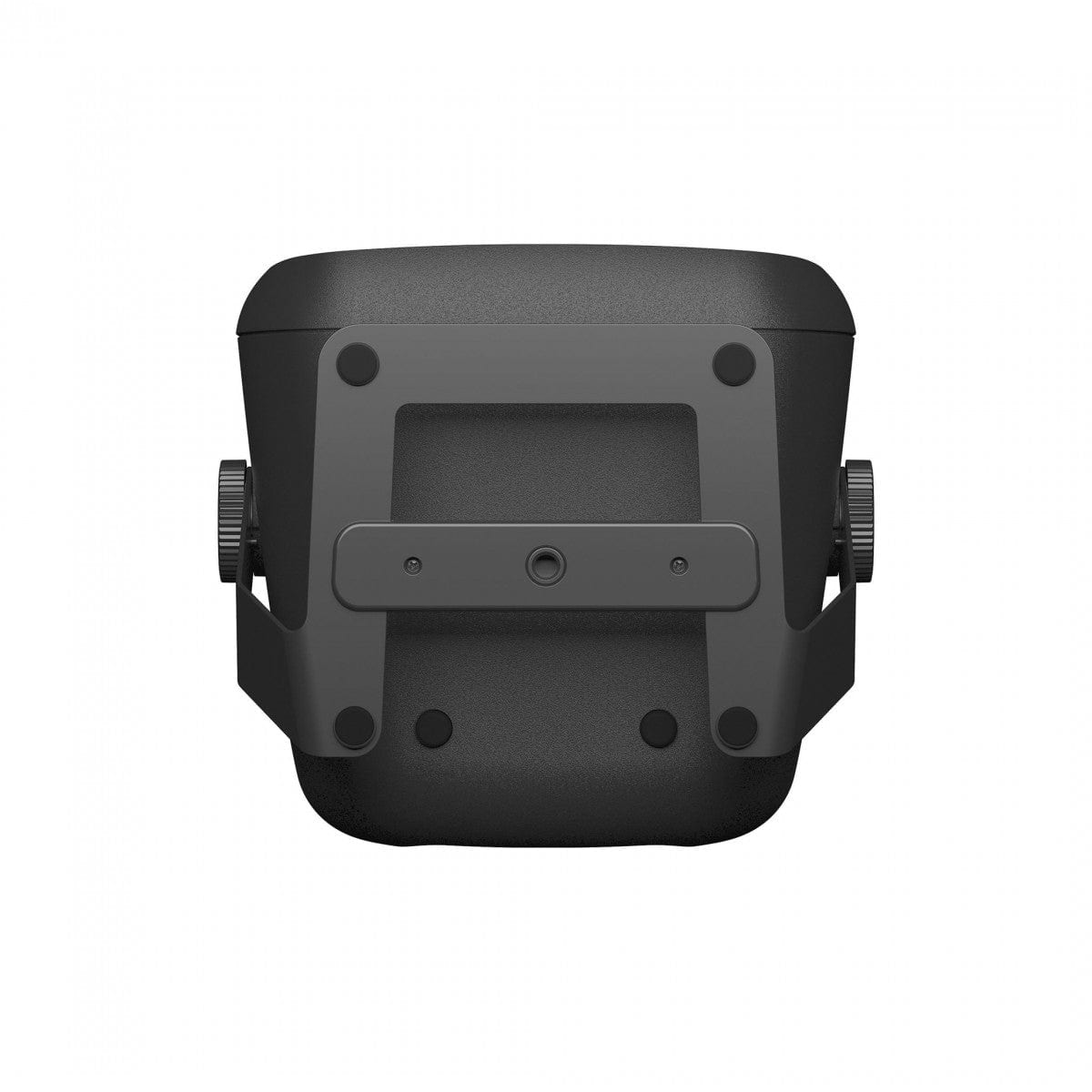

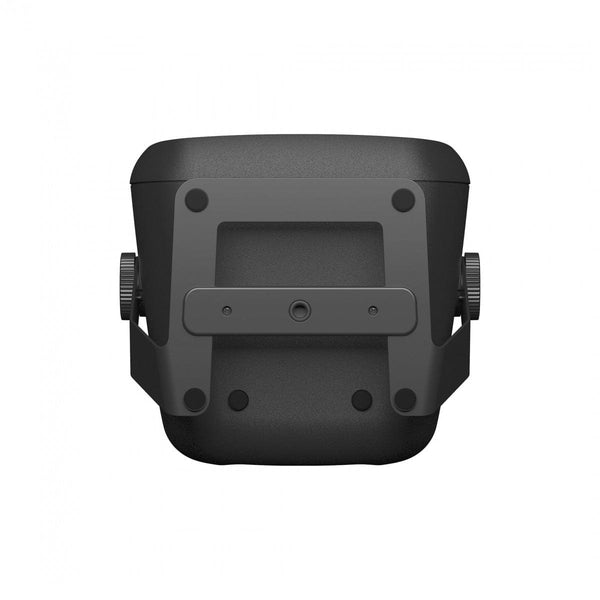

| Flying and mounting hardware 1 × 3/8", depth 12 mm (center of handle) |
| Dimensions (W x H x D) 239 x 310 x 215 mm (9.5" x 12.3" x 8.5"), with handle |
| Weight 5.5 kg (12.1 lbs), without AC adaptor |
| Accessories Power cord x 1, AC adaptor (PA-500) x 1 |
| Optional Accessories Carrying bag: BAG-STP100 |
